Sleeper 1500dd Generator

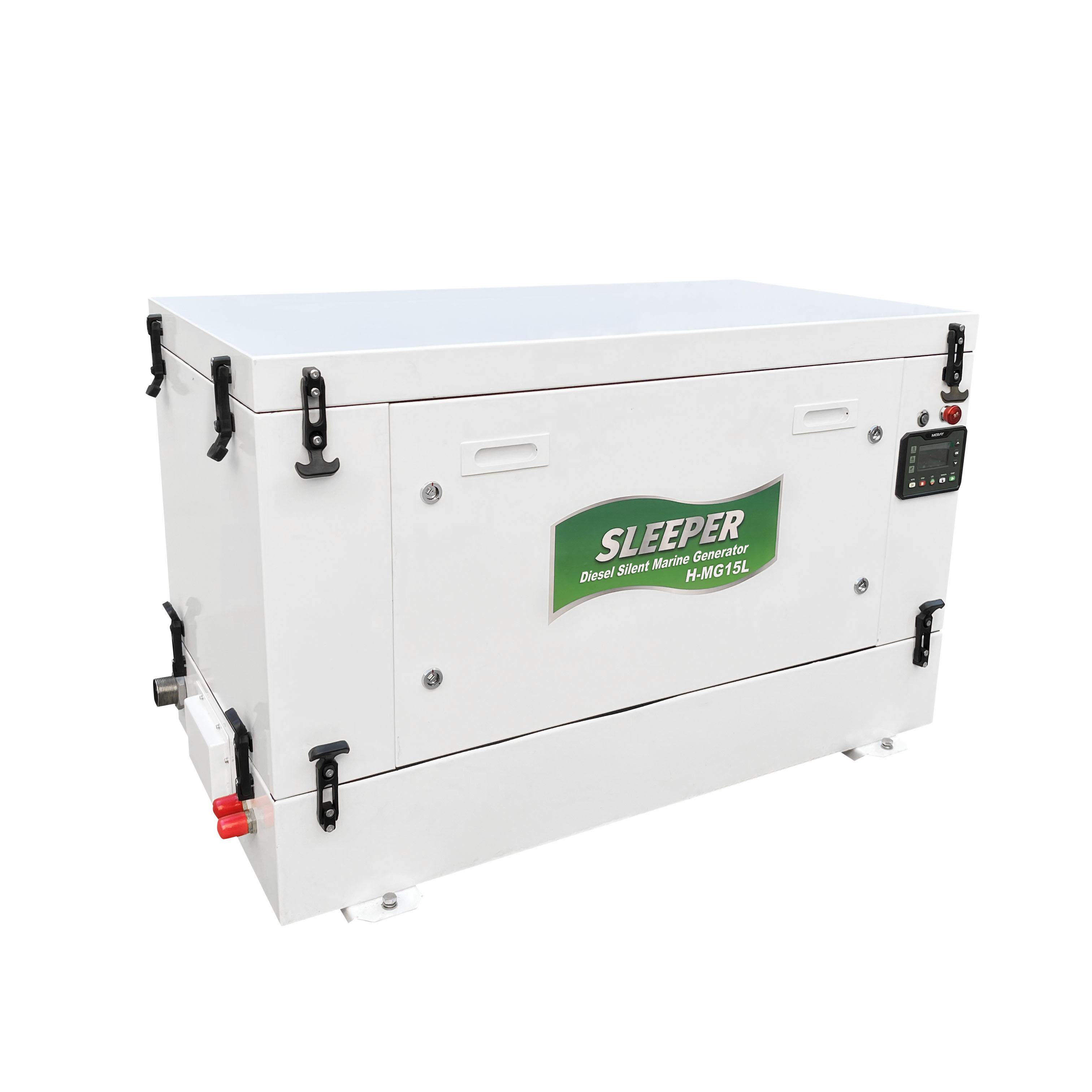

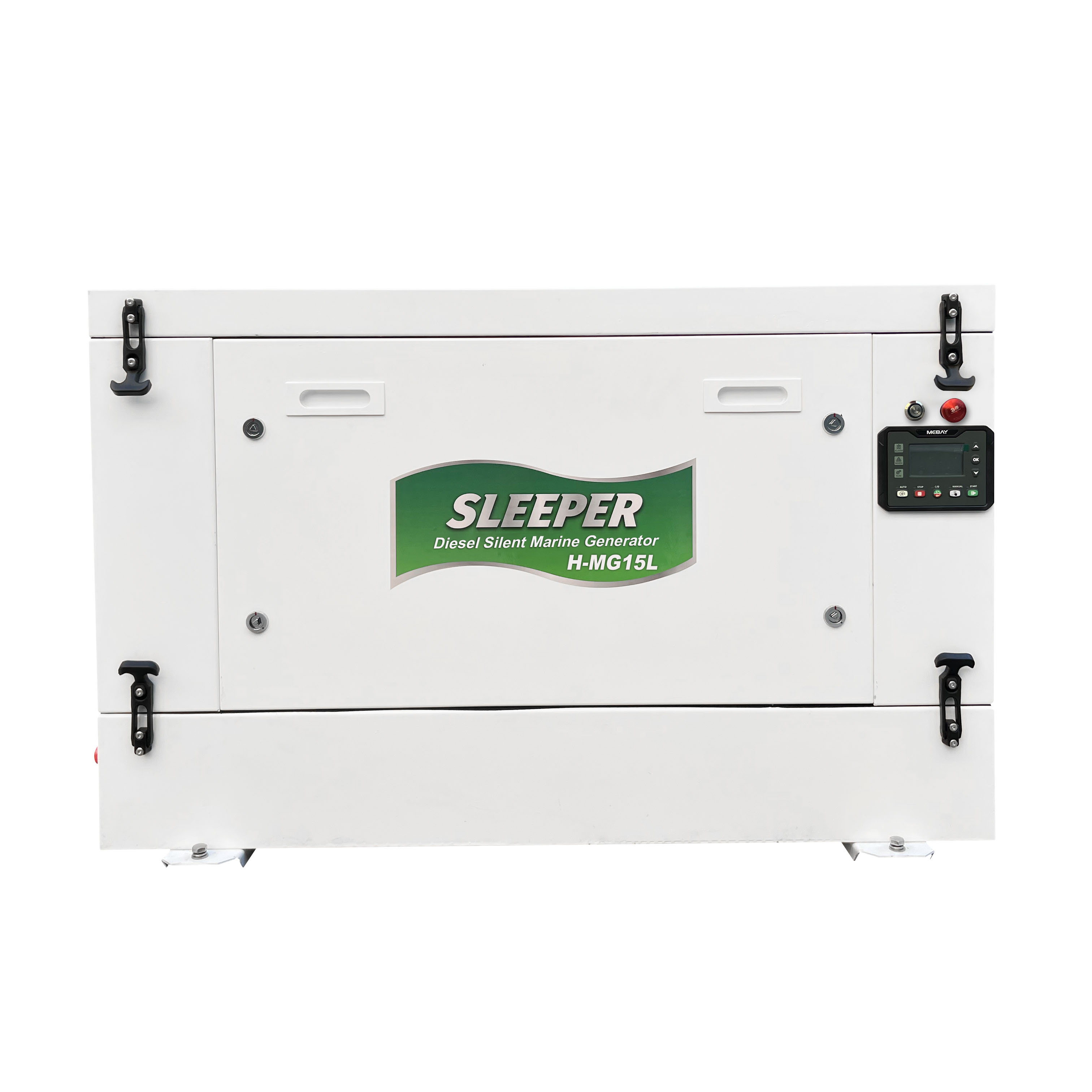

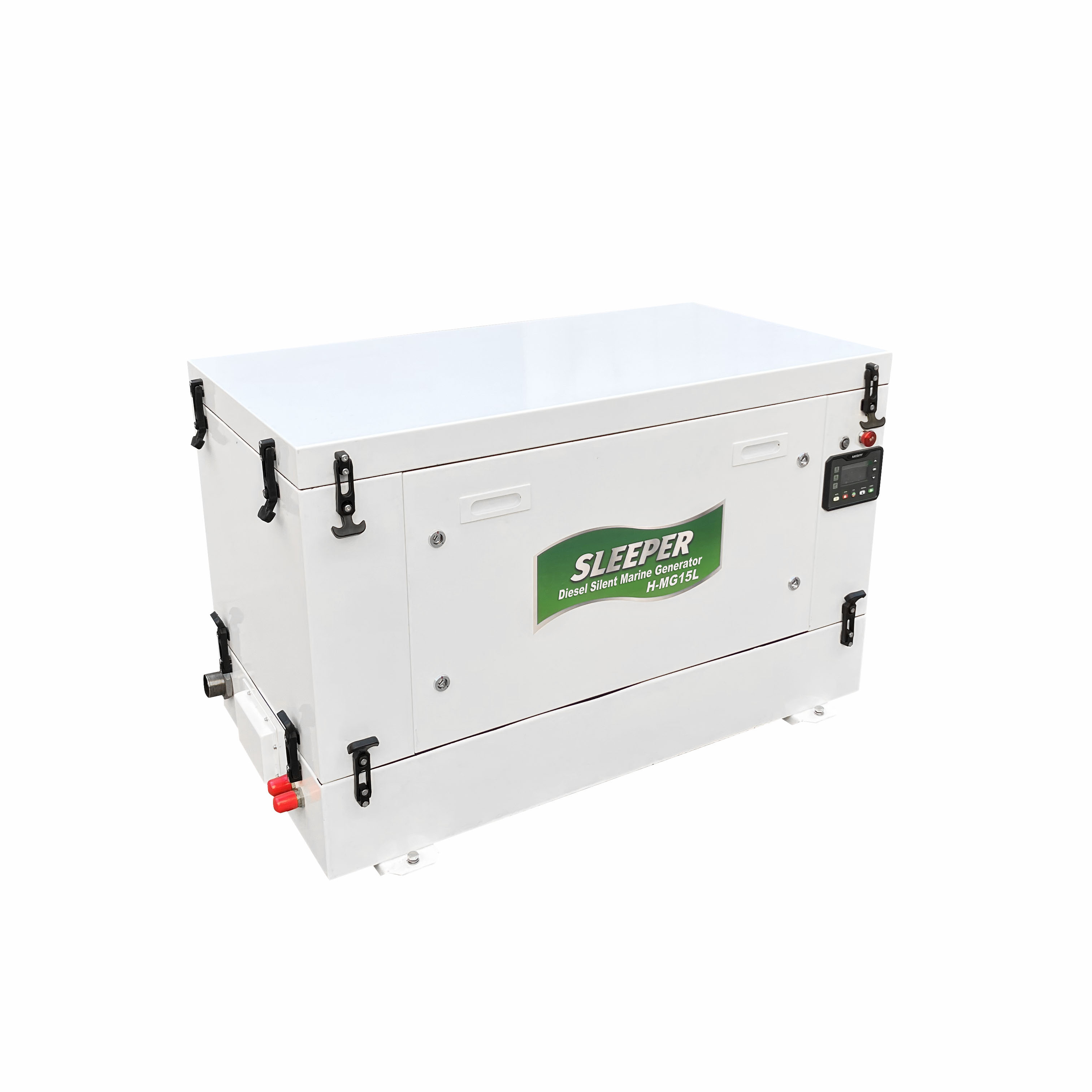

Sleeper H-MG15L 1500 RPM Marine Generator

Model: H-MG15L

$ 24.500
$ 22.050 Limited time
€ 19.692 ₺ 1.096.513
Prices are excluding VAT
H-MG15L sound-insulated 1500/1800 RPM marine diesel generator.
Contact Shop

Description

Sleeper H-MG15L is a sound-insulated diesel marine generator designed for 1500/1800 RPM marine applications.
Continuous power: 12 kW. Maximum power: 15 kVA.
With dual-circuit freshwater cooling via heat exchanger, digital display control and remote-control support, it is suitable for yacht and boat installations.
Standard accessories include a 15 m wired remote control panel, waterlock, electric fuel pump, oil-water separator, expansion tank with 2 m overflow hose, siphon breaker, seawater filter, 2 m exhaust hose and clamps.

Specifications

Model
H-MG15L
Dimensions (LxWxH)
1030x590x690 mm
Net weight
380 kg
Noise level
51 dBA / 7 m
Cooling system
Dual-circuit freshwater cooling via heat exchanger
Frequency
50 / 60 Hz
Output voltage
230 / 120 / 400V
Voltage stability
<=3%
Frequency stability
+/-1Hz
Maximum power
15 kVA
Continuous power
12 kW
Voltage regulation
Electronic
Frequency regulation
Electronic
Start system
12VDC
Auto start
Integrated
Control panel
Digital display control (DDC local + DDC remote)
Engine brand
YANMAR (KUBOTA)
Engine model
4TNV88
Cylinders
4 cylinders
Displacement
2190 cc
Speed
1500/1800 rpm
Fuel
Diesel
Consumption
1.5-3.6 L/h
Oil capacity
7.4 L

Files

Generatorcontrolpaneldrawing
Download
Generatorcontrolpanelusermanual
Download
