Sleeper 1500dd Generator

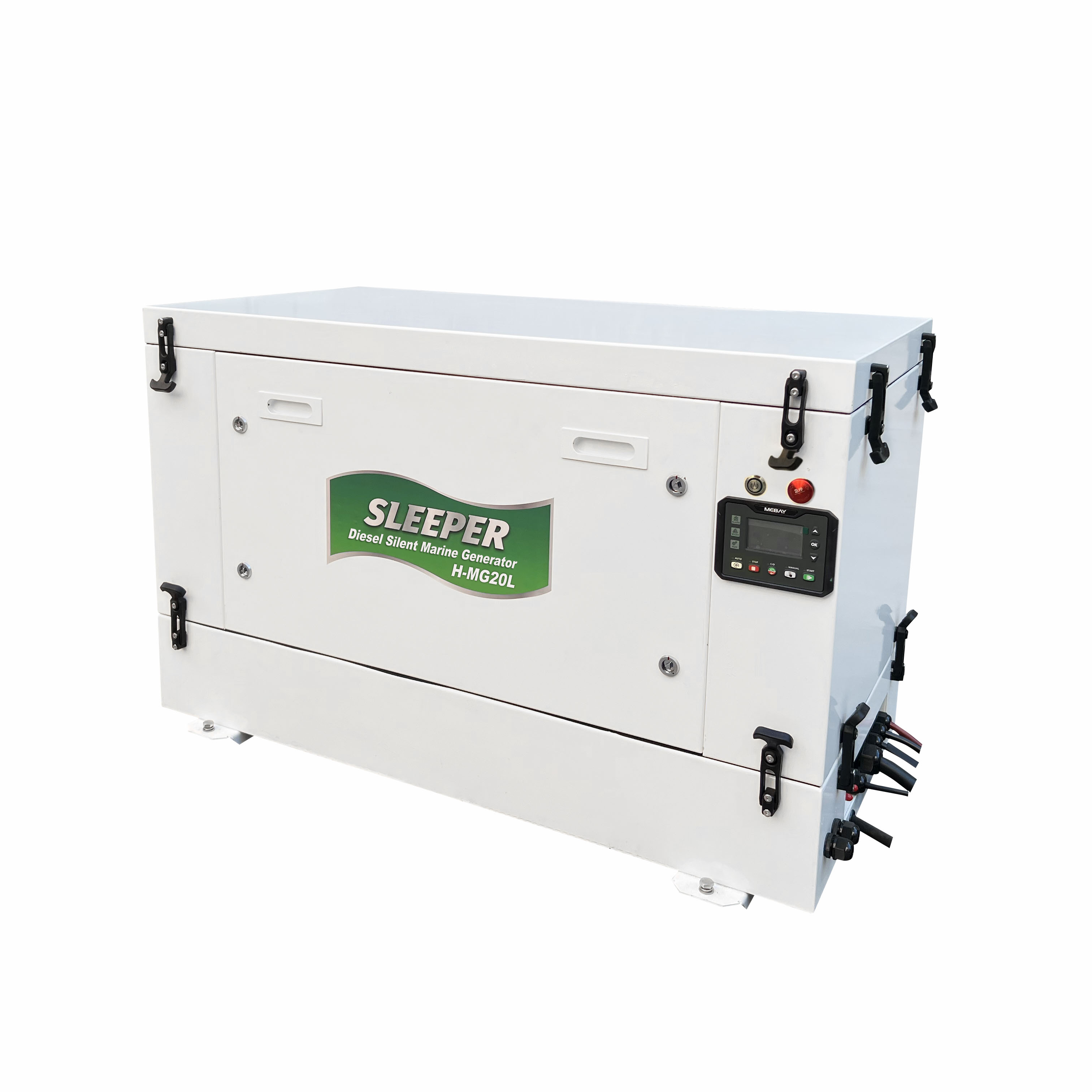

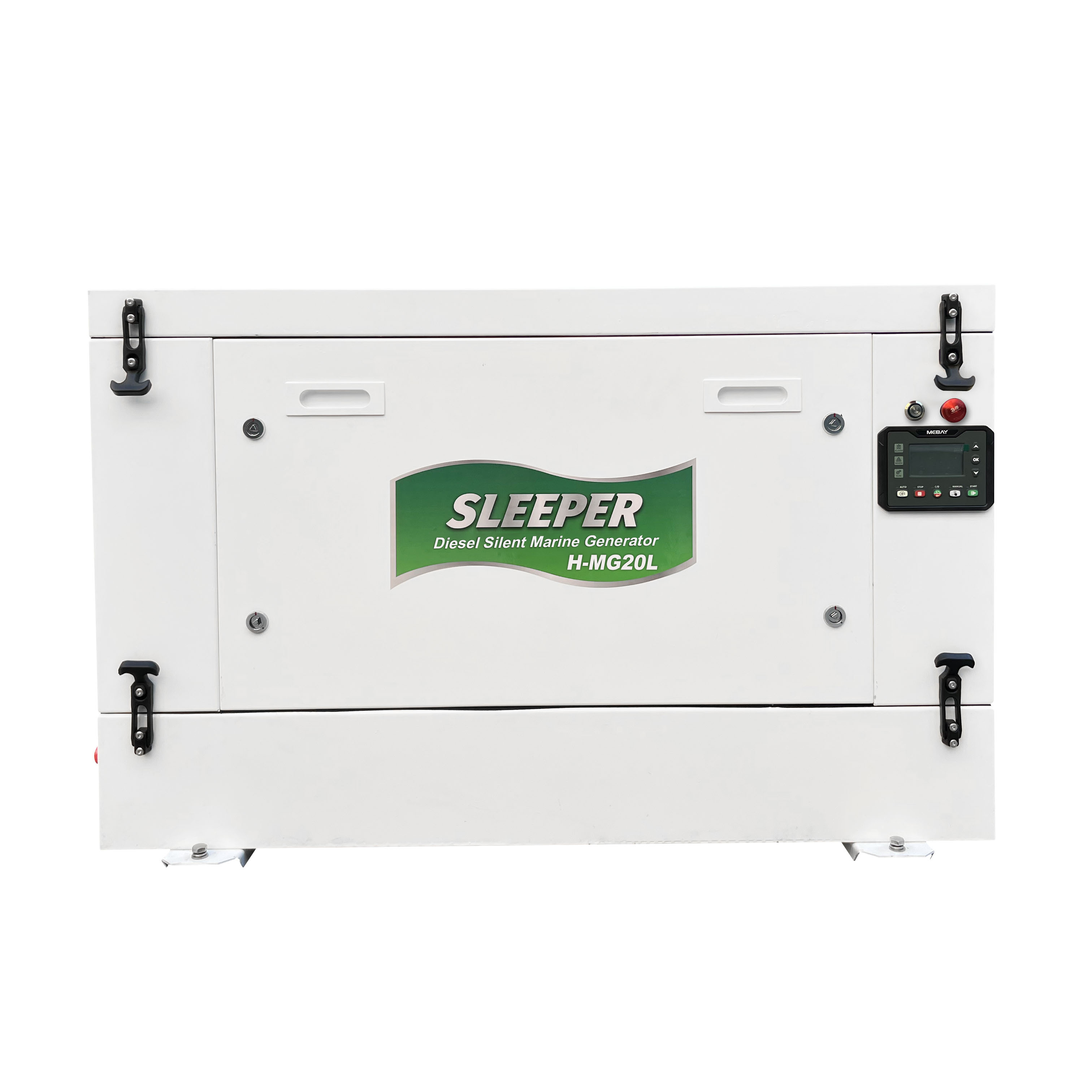

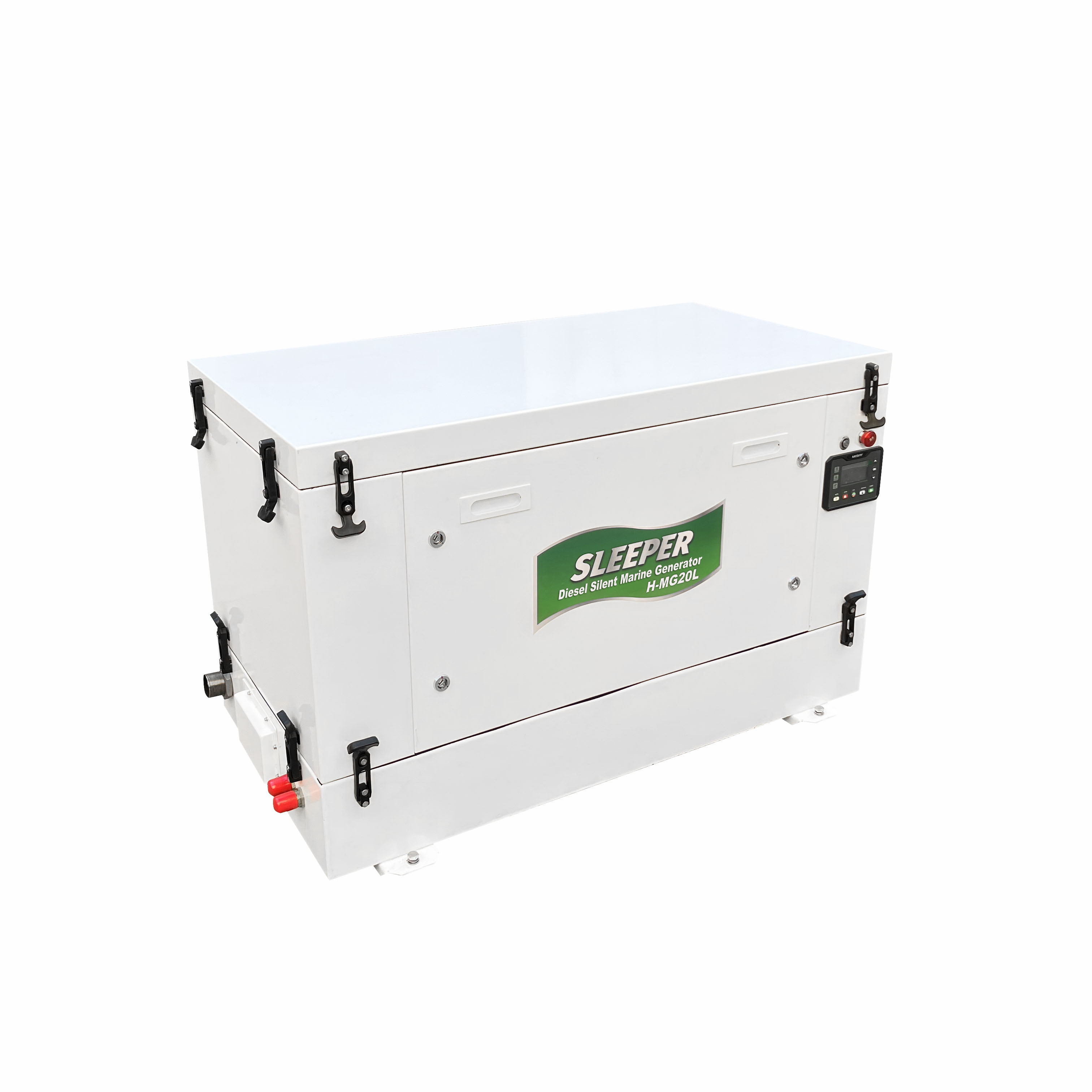

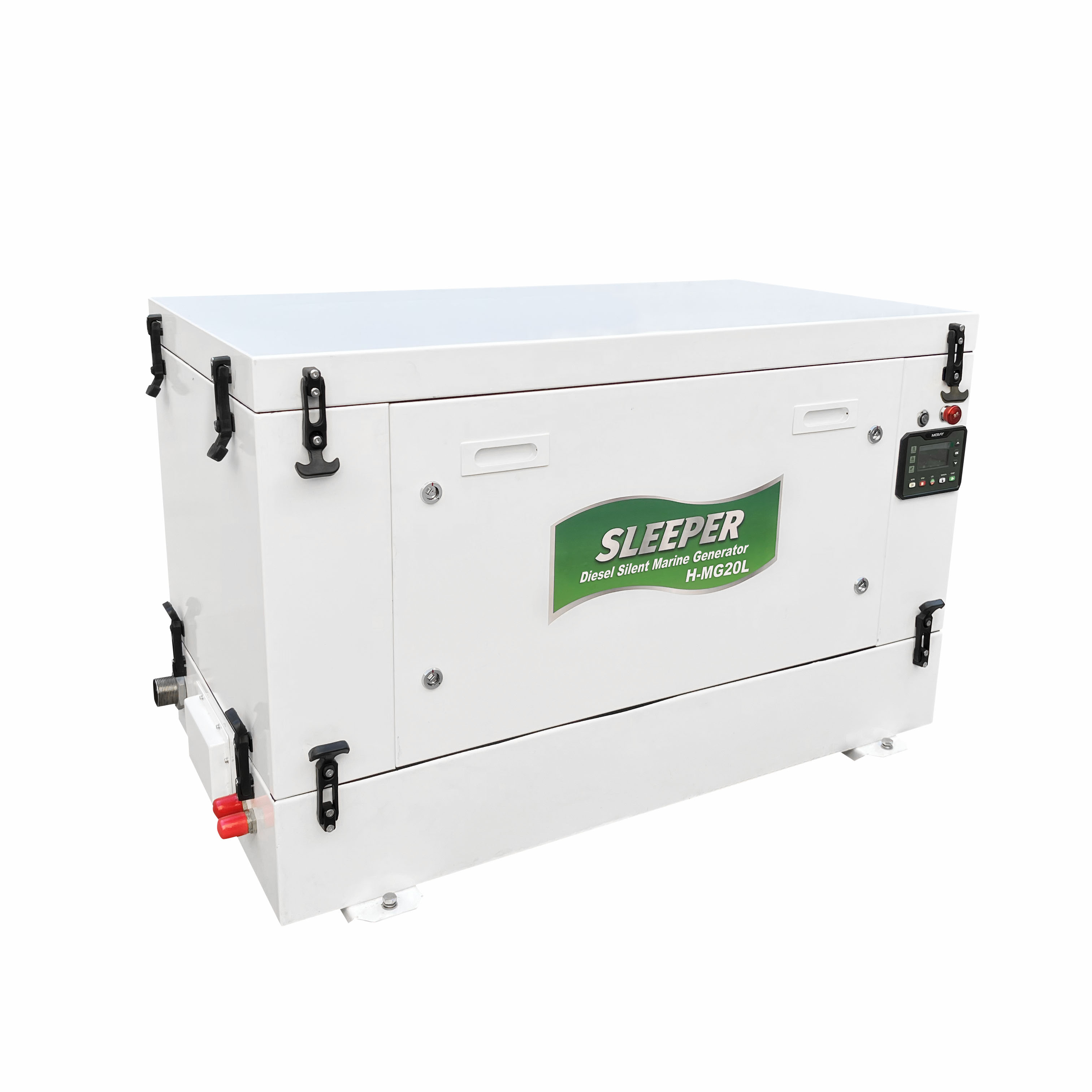

Sleeper H-MG20L 1500 RPM Marine Generator

Model: H-MG20L

$ 27.400
$ 24.660 Limited time
€ 21.558 ₺ 1.162.500
Prices are excluding VAT
H-MG20L sound-insulated 1500/1800 RPM marine diesel generator.
Contact Shop

Description

Sleeper H-MG20L is a sound-insulated diesel marine generator designed for 1500/1800 RPM marine applications.
Continuous power: 15 kW. Maximum power: 20 kVA.
With dual-circuit freshwater cooling via heat exchanger, digital display control and remote-control support, it is suitable for yacht and boat installations.
Standard accessories include a 15 m wired remote control panel, waterlock, electric fuel pump, oil-water separator, expansion tank with 2 m overflow hose, siphon breaker, seawater filter, 2 m exhaust hose and clamps.

Specifications

Model
H-MG20L
Dimensions (LxWxH)
1100x620x765 mm
Net weight
440 kg
Noise level
51 dBA / 7 m
Cooling system
Dual-circuit freshwater cooling via heat exchanger
Frequency
50 / 60 Hz
Output voltage
230 / 120 / 400V
Voltage stability
<=3%
Frequency stability
+/-1Hz
Maximum power
20 kVA
Continuous power
15 kW
Voltage regulation
Electronic
Frequency regulation
Electronic
Start system
12VDC
Auto start
Integrated
Control panel
Digital display control (DDC local + DDC remote)
Engine brand
YANMAR (KUBOTA)
Engine model
4TNV84T
Cylinders
4 cylinders
Displacement
1995 cc
Speed
1500/1800 rpm
Fuel
Diesel
Consumption
1.5-4.5 L/h
Oil capacity
7.4 L

Files

Generatorcontrolpaneldrawing
Download
Generatorcontrolpanelusermanual
Download
