Sleeper 1500dd Generator

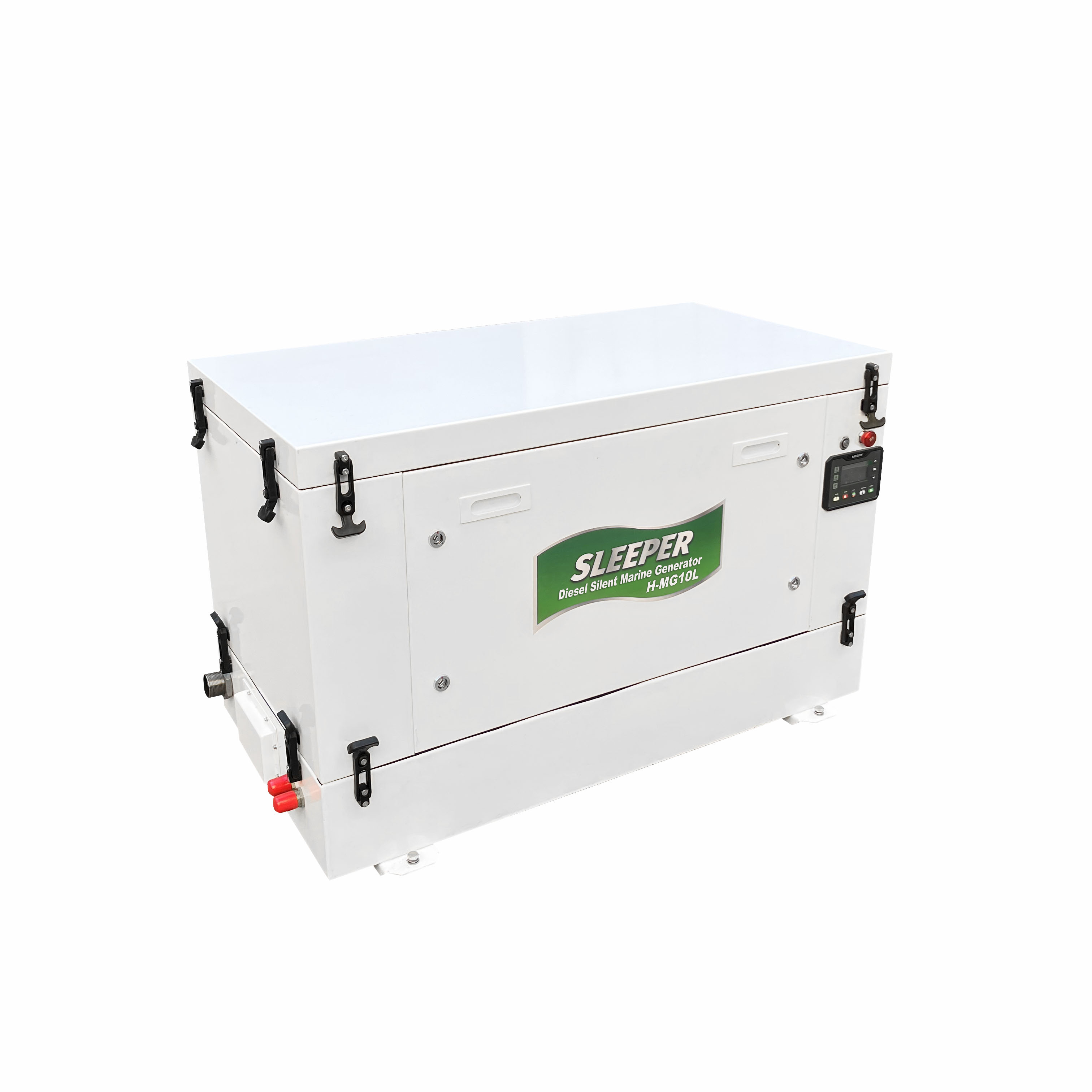

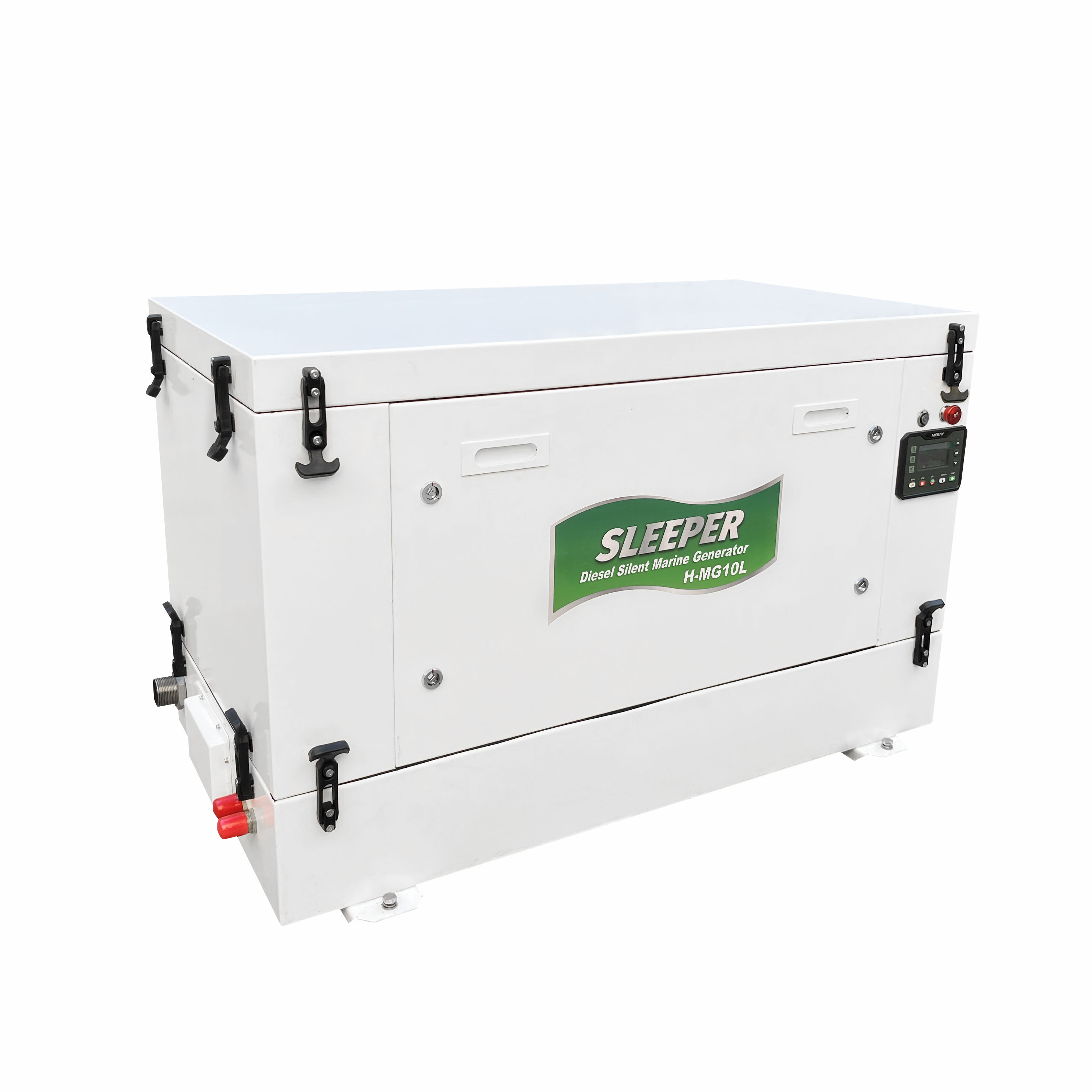

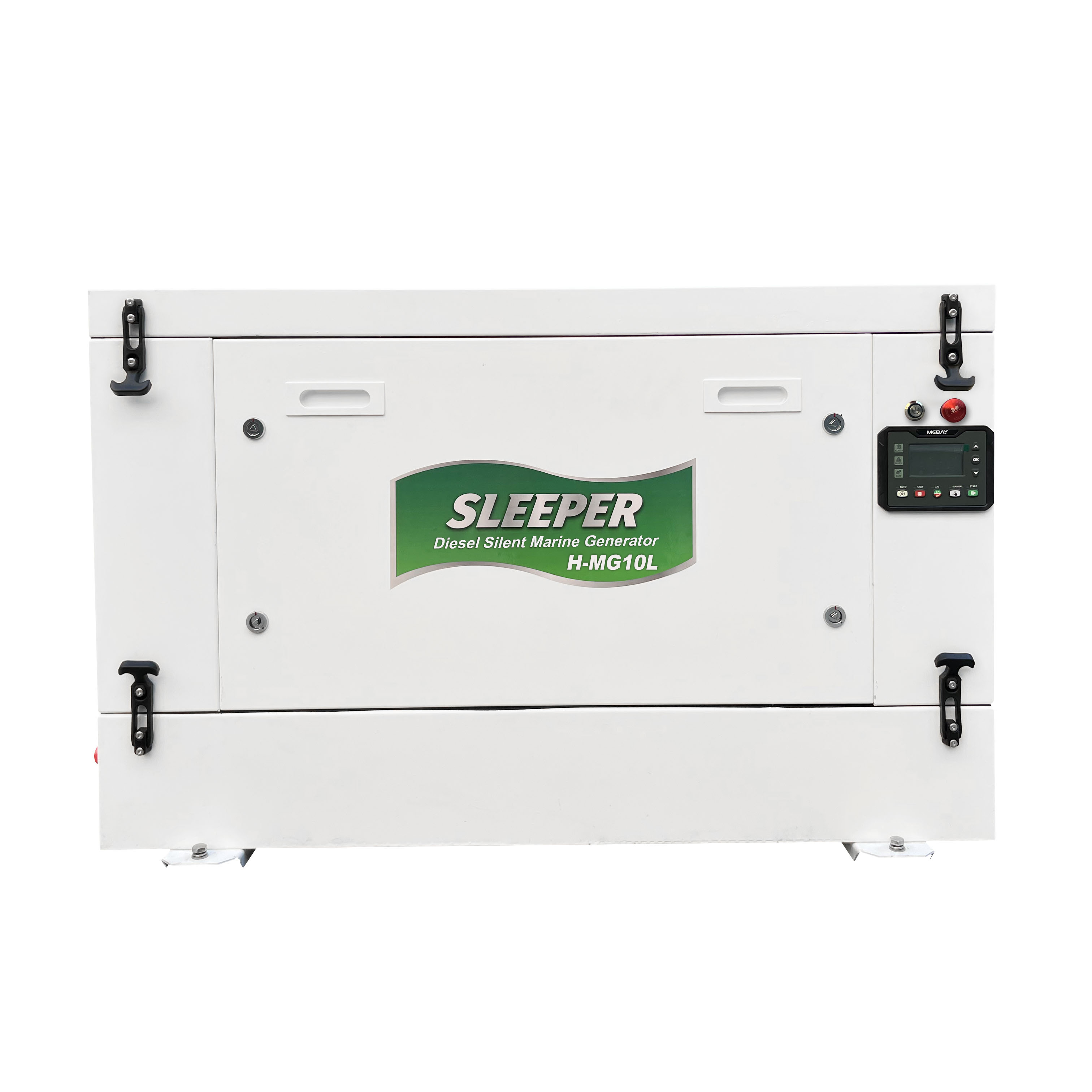

Sleeper H-MG10L 1500 RPM Marine Generator

Model: H-MG10L

$ 20.000
$ 18.000 Limited time
€ 16.075 ₺ 895.113
Prices are excluding VAT
H-MG10L sound-insulated 1500/1800 RPM marine diesel generator.
Contact Shop

Description

Sleeper H-MG10L is a sound-insulated diesel marine generator designed for 1500/1800 RPM marine applications.
Continuous power: 8 kW / 10 kVA. Maximum power: 8.6 kW / 10.8 kVA.
With dual-circuit freshwater cooling via heat exchanger, digital display control and remote-control support, it is suitable for yacht and boat installations.
Standard accessories include a 15 m wired remote control panel, waterlock, electric fuel pump, oil-water separator, expansion tank with 2 m overflow hose, siphon breaker, seawater filter, 2 m exhaust hose and clamps.

Specifications

Model
H-MG10L
Dimensions (LxWxH)
1010x620x690 mm
Net weight
360 kg
Noise level
54 dBA / 7 m
Cooling system
Dual-circuit freshwater cooling via heat exchanger
Frequency
50 Hz
Output voltage
230 / 400V
Voltage regulation
AVR
Frequency tolerance
+/-5%
Maximum power
8.6 kW / 10.8 kVA
Continuous power
8 kW / 10 kVA
Start system
12VDC
Auto start
Integrated
Control panel
Digital display control (DDC local + DDC remote)
Engine brand
YANMAR
Engine model
3TNV88
Cylinders
3 cylinders
Displacement
1642 cc
Speed
1500 rpm
Fuel
Diesel
Consumption
1.5-2.5 L/h
Oil capacity
6.7 L

Files

Generatorcontrolpaneldrawing
Download
Generatorcontrolpanelusermanual
Download
