Sleeper Generators

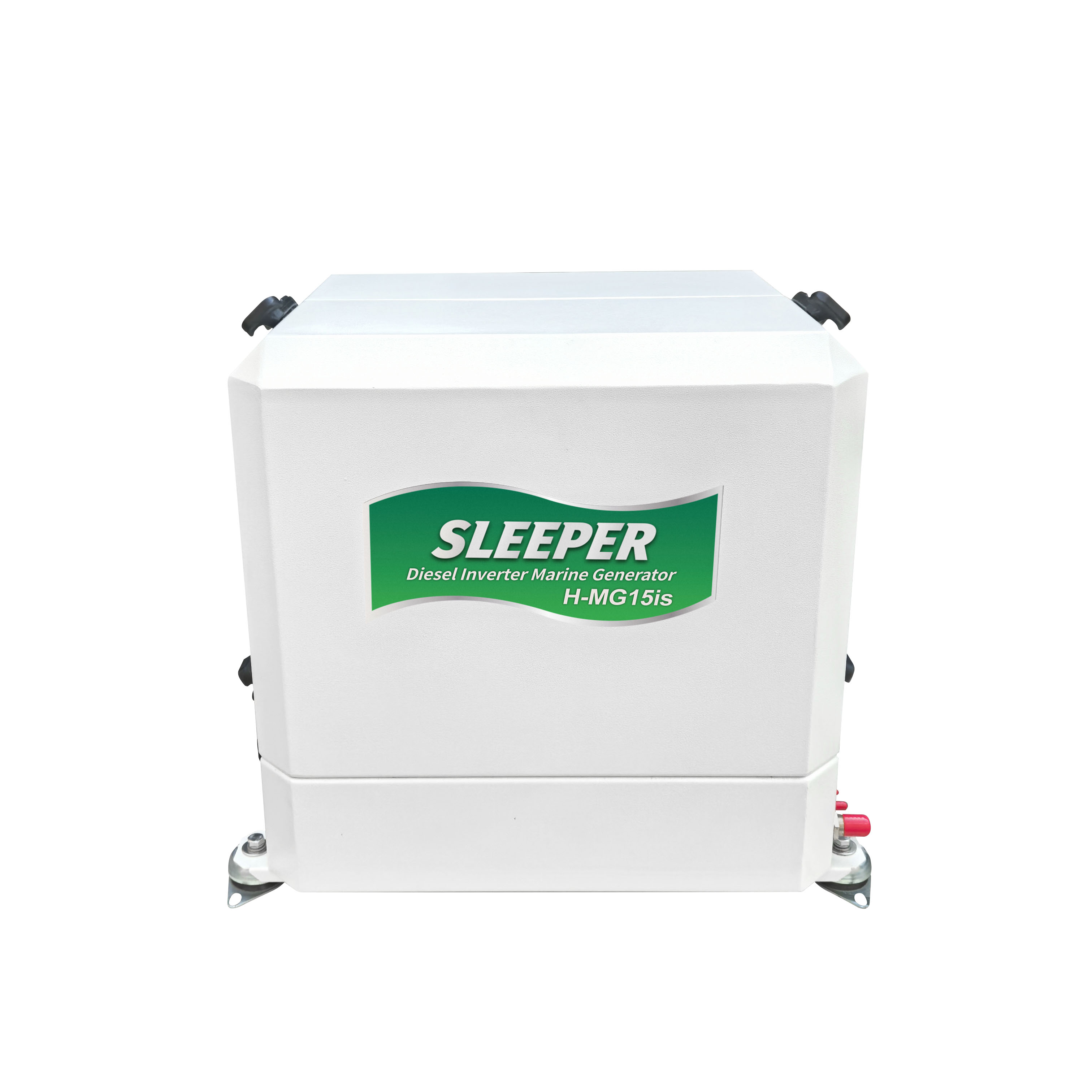

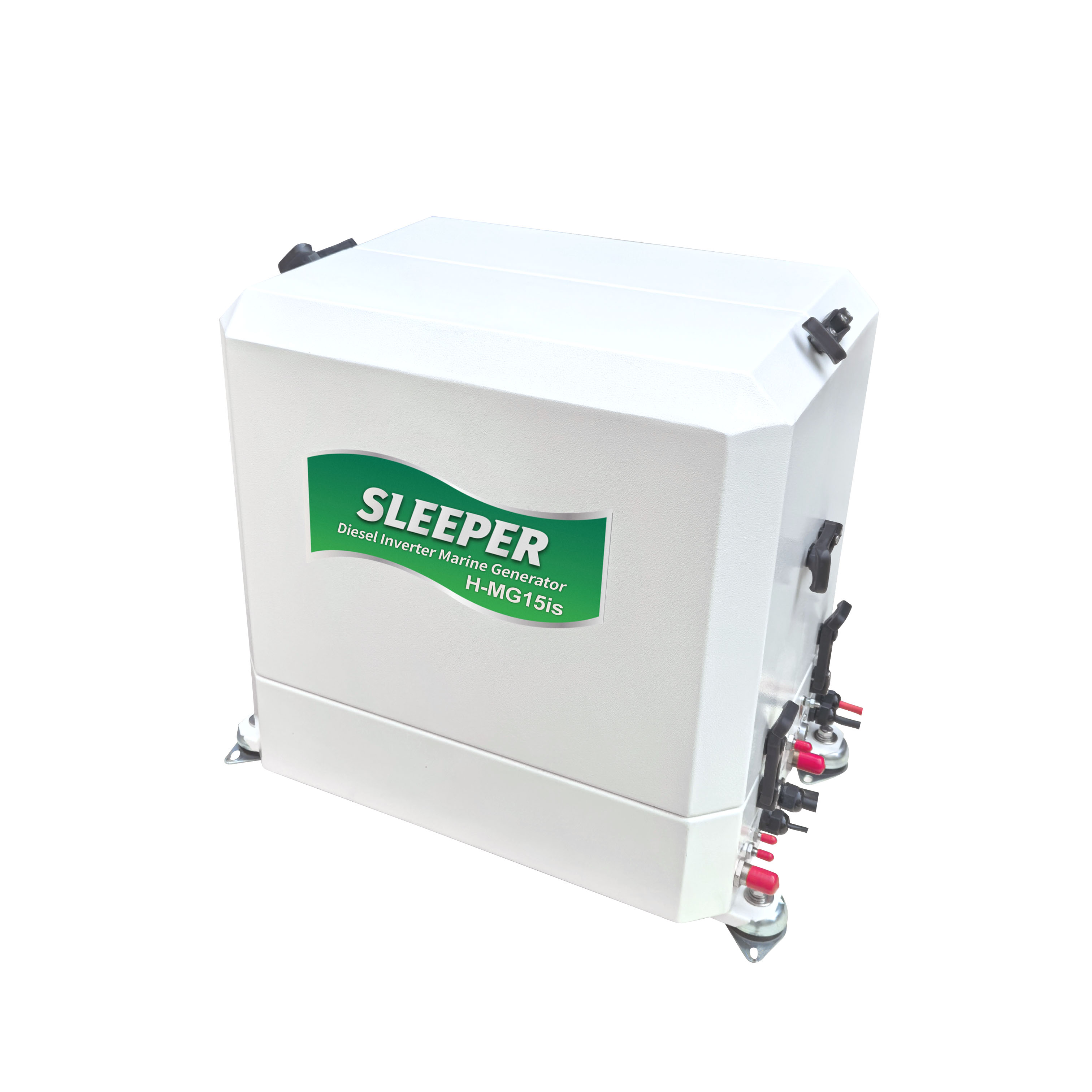

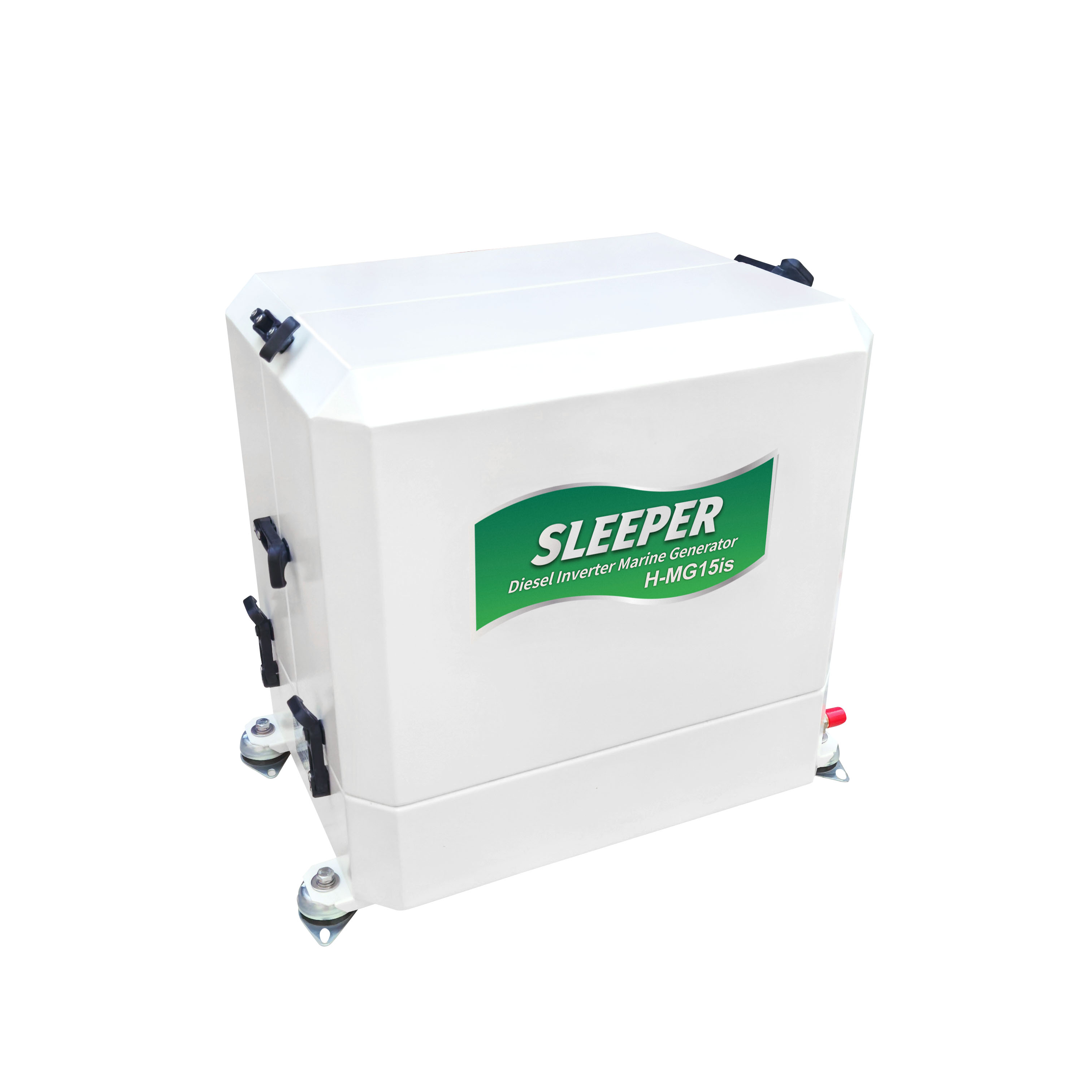

Sleeper H-MG15is Inverter Marine Generator

Model: H-MG15is

H-MG15is PMG inverter controlled silent marine diesel generator.
Contact Shop

Description

Sleeper H-MG15is is a quiet diesel inverter marine generator developed for onboard marine use with PMG inverter technology.
Continuous power: 12 kW / 15 kVA. Maximum power: 12.6 kW / 15.8 kVA.
PMG inverter control delivers stable, high-quality AC power for air-conditioning systems, battery charging, galley equipment and other onboard electrical loads.
The generator is 100% water-cooled, sound-insulated and designed for compact, quiet and efficient yacht and boat installations.

Specifications

Model
H-MG15is
Nominal voltage
230 / 120V
Frequency
50 / 60 Hz
Phase
1
Maximum power
12.6 kW / 15.8 kVA
Continuous power
12 kW / 15 kVA
Noise level
51 dBA / 7 m
Speed range
2200-3000 rpm adjustable
Cooling
Heat exchanger
Harmonic distortion
<=3%
Frequency stability
+/-0.1%
Alternator technology
Water-cooled, brushless, permanent magnet

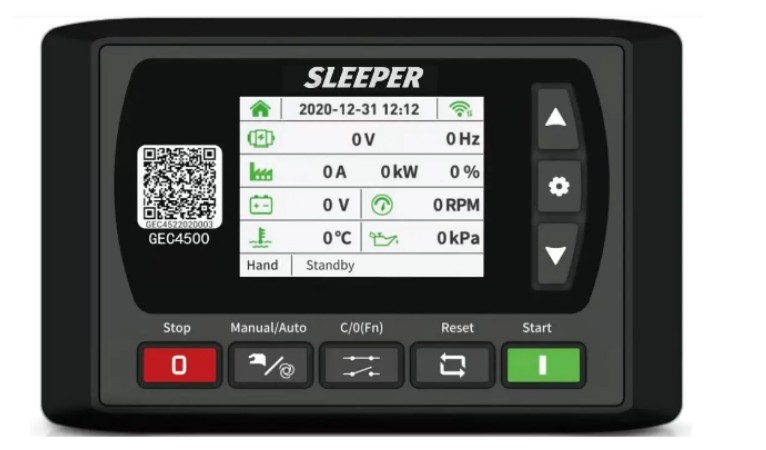

Generator control
PMG inverter
Inverter
PMGi 15
Engine model
Kubota D902
Cylinders
3
Displacement
898 cc
Consumption
1.5 - 4 L/h
Battery
12VDC / 80Ah
Charging
Alternator 12V/14A
Oil capacity
3.7 L
Canopy
648x445x558 mm
Canopy weight
180 kg

Files

Generatorcontrolpaneldrawing
Download
Generatorcontrolpanelusermanual
Download
