Sleeper Generators

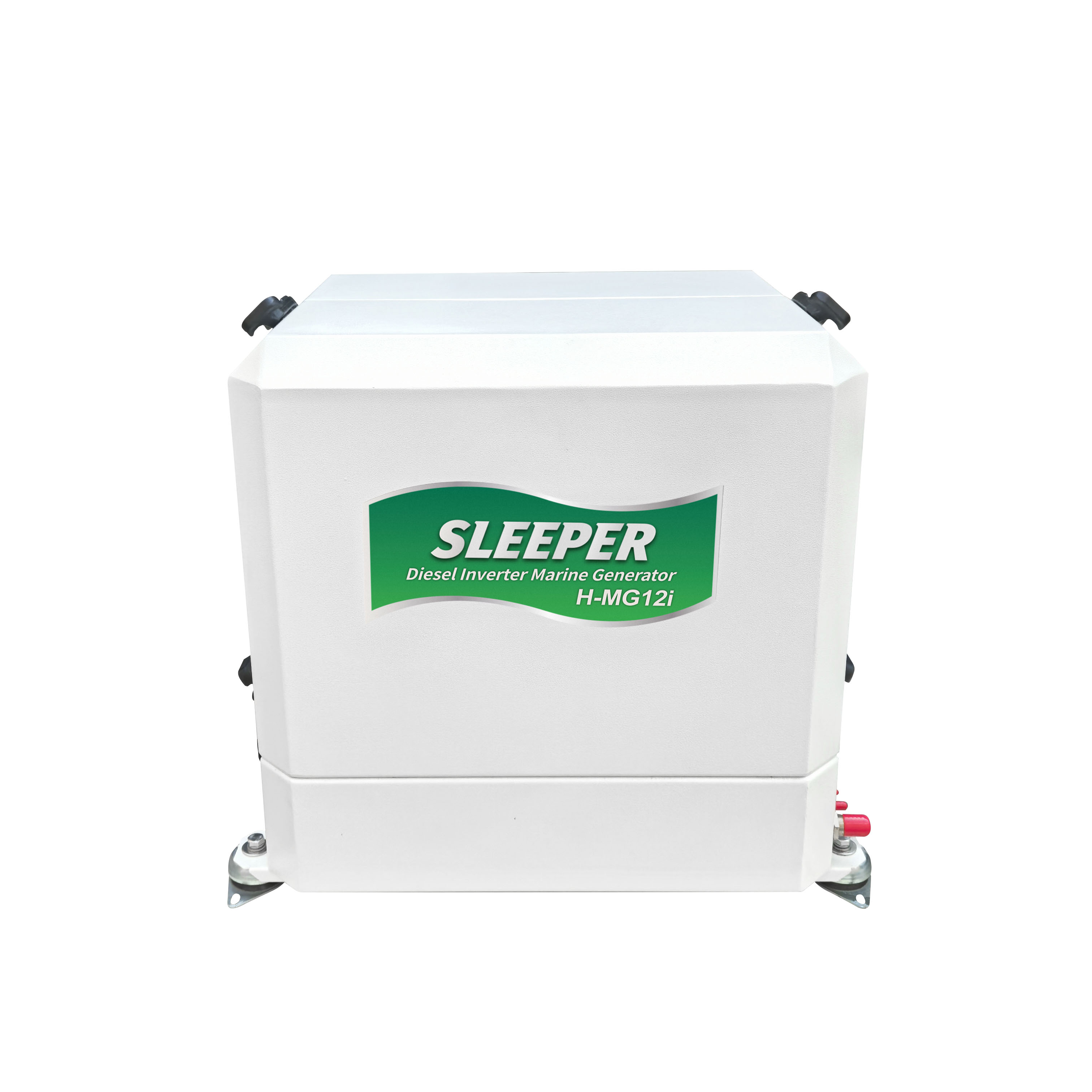

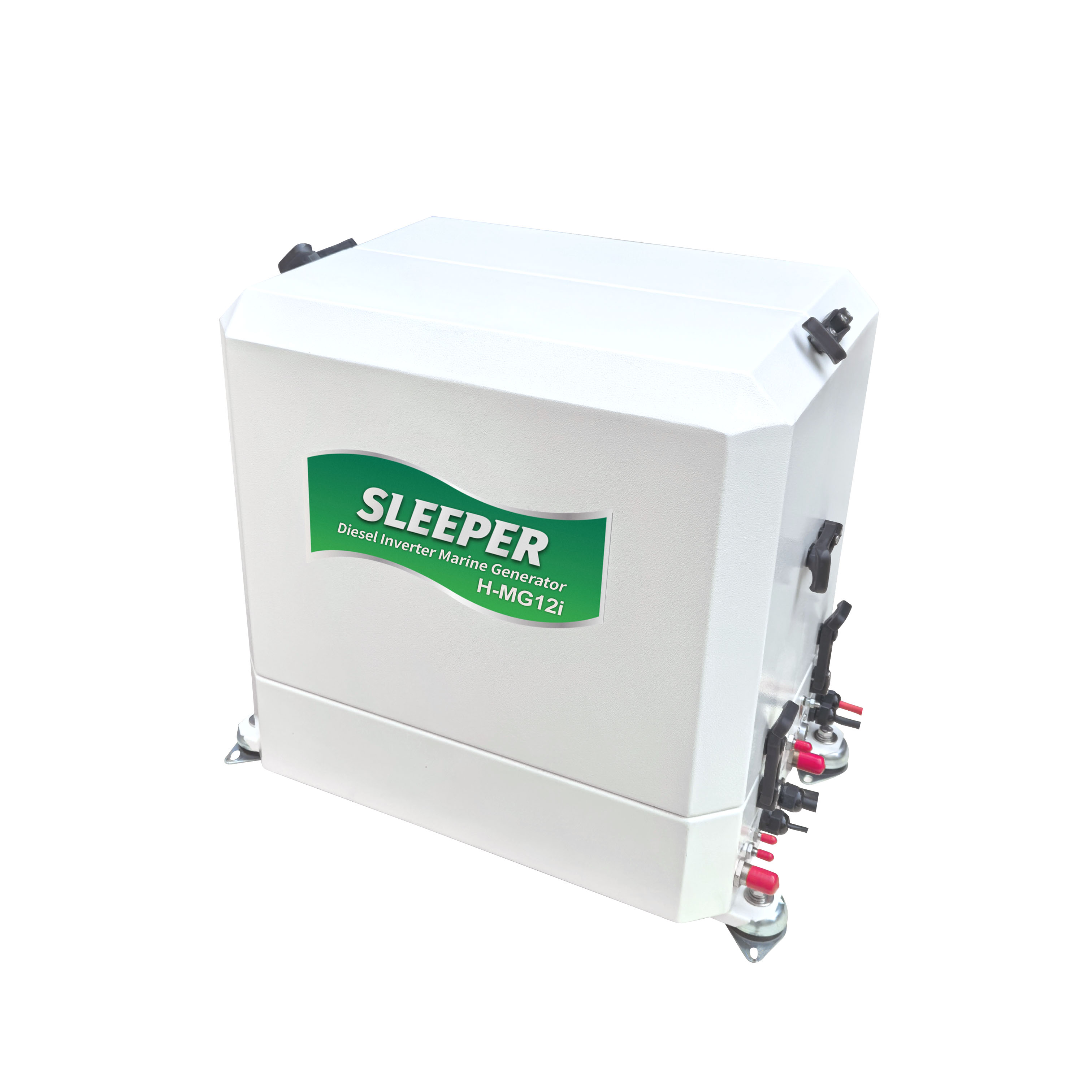

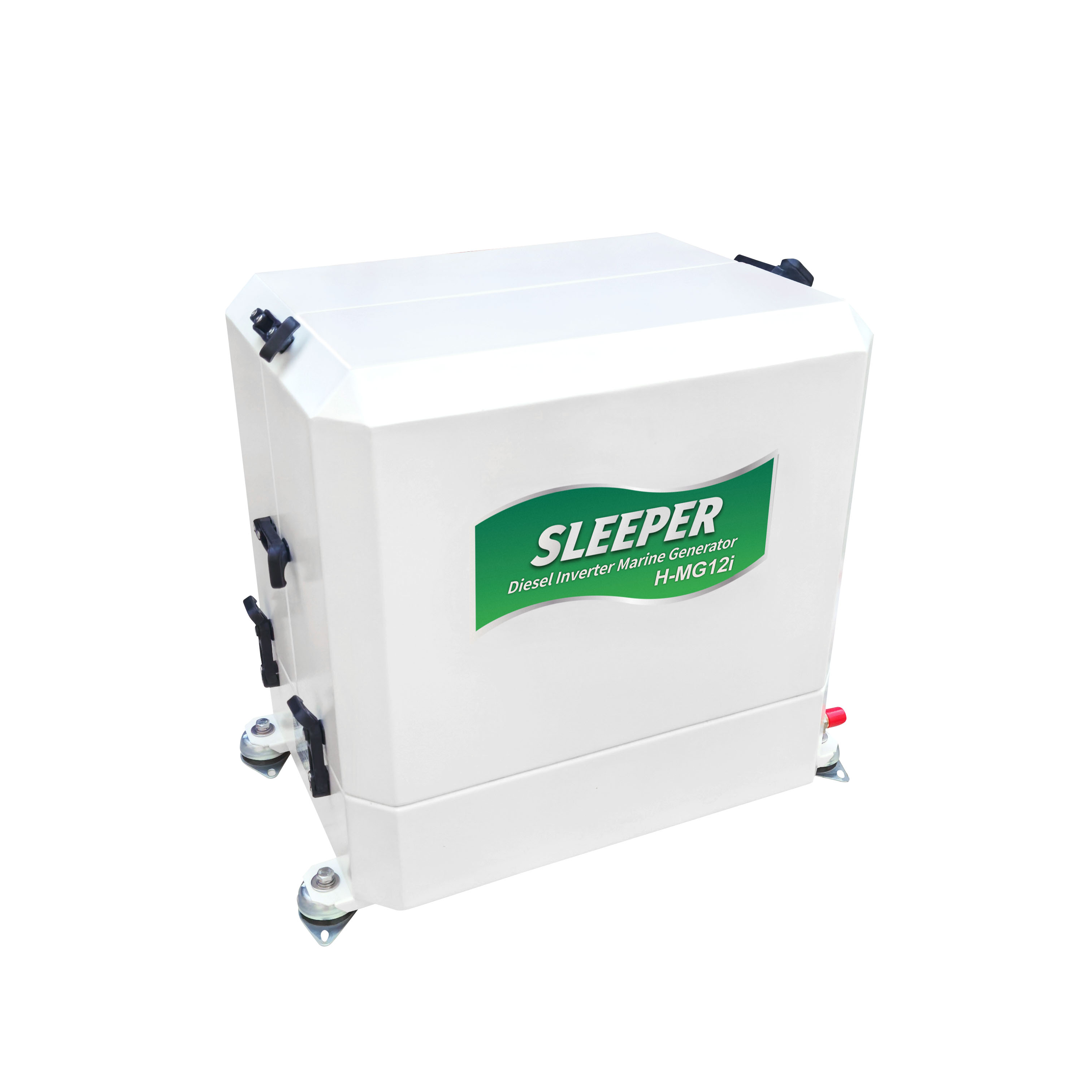

Sleeper H-MG12i Inverter Marine Generator

Model: H-MG12i

$ 18.500
$ 16.650 Limited time
€ 14.556 ₺ 784.899
Prices are excluding VAT
H-MG12i PMG inverter controlled silent marine diesel generator.
Contact Shop

Description

Sleeper H-MG12i is a PMG inverter controlled silent diesel generator model developed for marine use.
Continuous power: 9kW / 11.2kVA. Maximum power: 10kW / 12.5kVA.

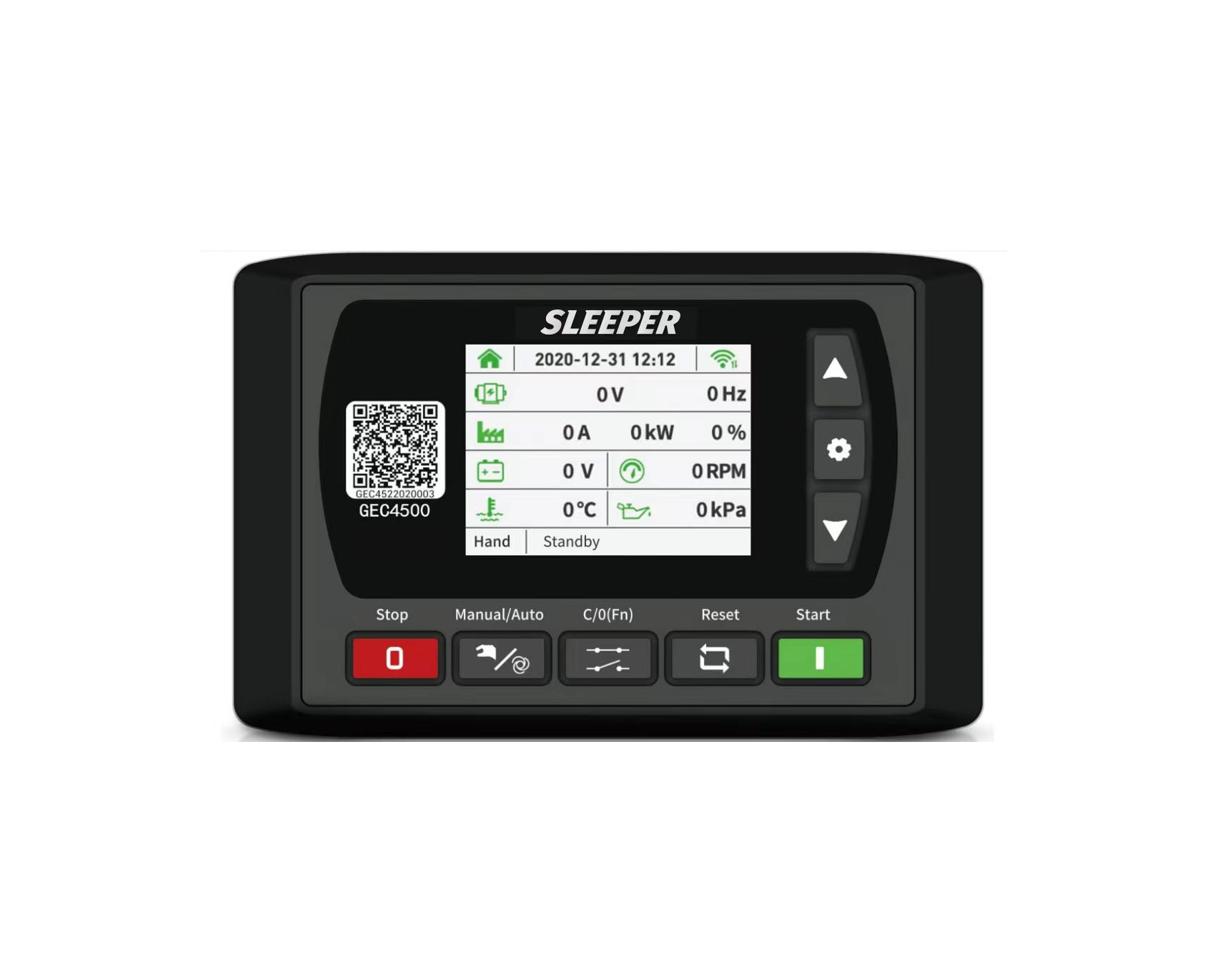

It is suitable for boat and yacht applications with its brushless, water-cooled permanent magnet alternator technology and DDC digital control panel.
Standard accessories:
1. Remote control panel with 15m cable
2. Waterlock (water trap / water lock)
3. Electric fuel pump
4. Oil-water separator
5. Expansion tank with 2 m overflow hose
6. Siphon breaker
7. Sea water filter
8. 2m exhaust hose
9. Handcuffs

Specifications

Model
H-MG12i
Rated voltage
230/120V
Frequency
50 / 60 Hz
Phase
1
Maximum power
10kW / 12.5kVA
Continuous power
9kW / 11.2kVA
Noise
51 dBA / 7m
Speed range
2200-3000 rpm adjustable
Cooling
Heat exchanger
Harmonic distortion
≤3%
Frequency stability
±0.1%
Alternator technology
Brushless, water-cooled, permanent magnet
Generator control
PMG Inverter
Inverter
PMGi 12
Engine brand
KUBOTA
Engine model
D722
Cylinder
3
Volume
719 cc
Consumption
1.5 - 3.3 L/hour
Battery
12VDC / 80Ah
Charging
Alternator 12V/14A
Oil capacity
3.8 L
Cabin
578x445x558 mm
Inverter dimensions
463 x 234 x 180 mm
Cabin weight
142 kg
Inverter weight
16 kg

Files

Generatorcontrolpaneldrawing
Download
Generatorcontrolpanelusermanual
Download
H Mg12idrawing 1
Download
H Mg12ispecification
Download
Brochureh Mg12i
Download
