Sleeper Generators

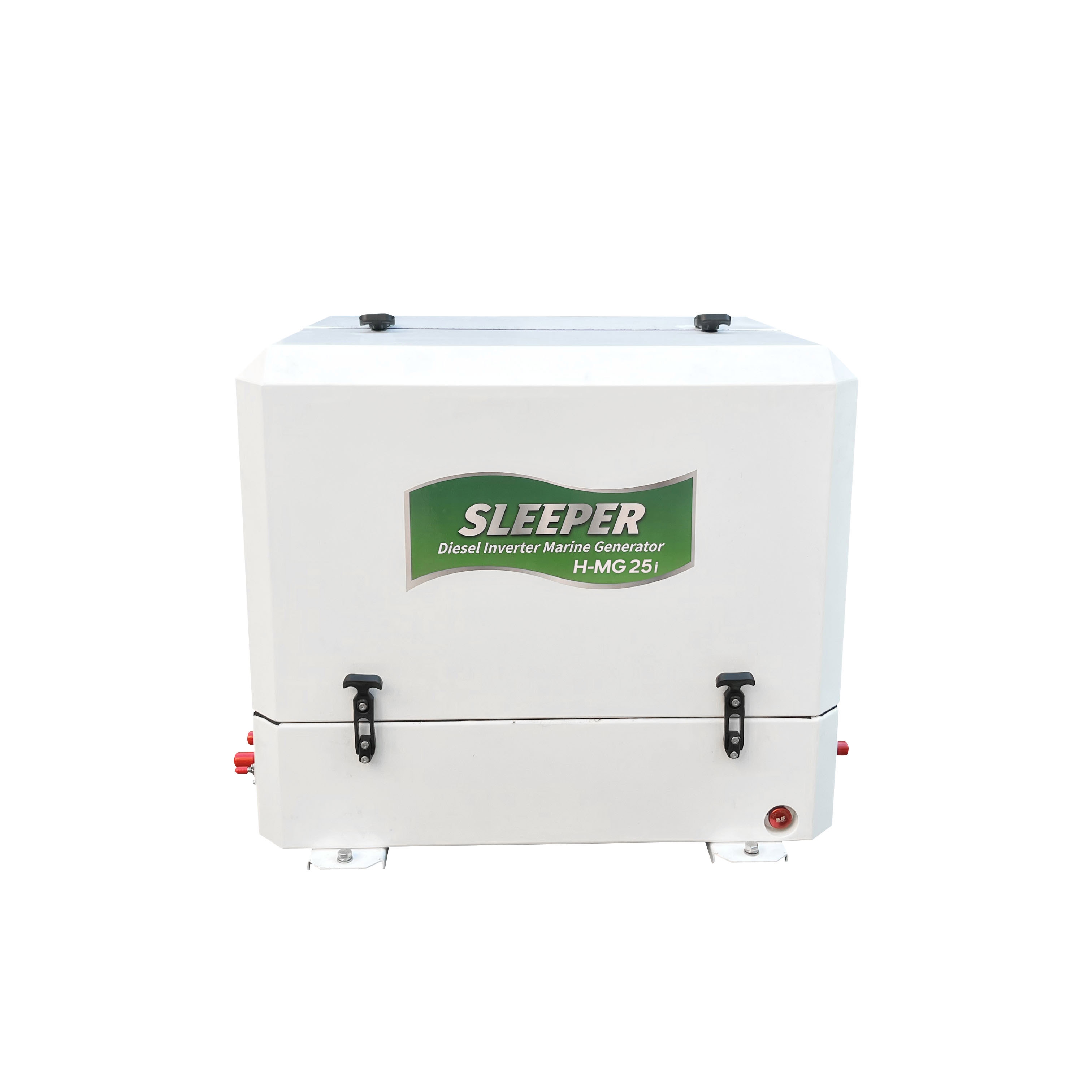

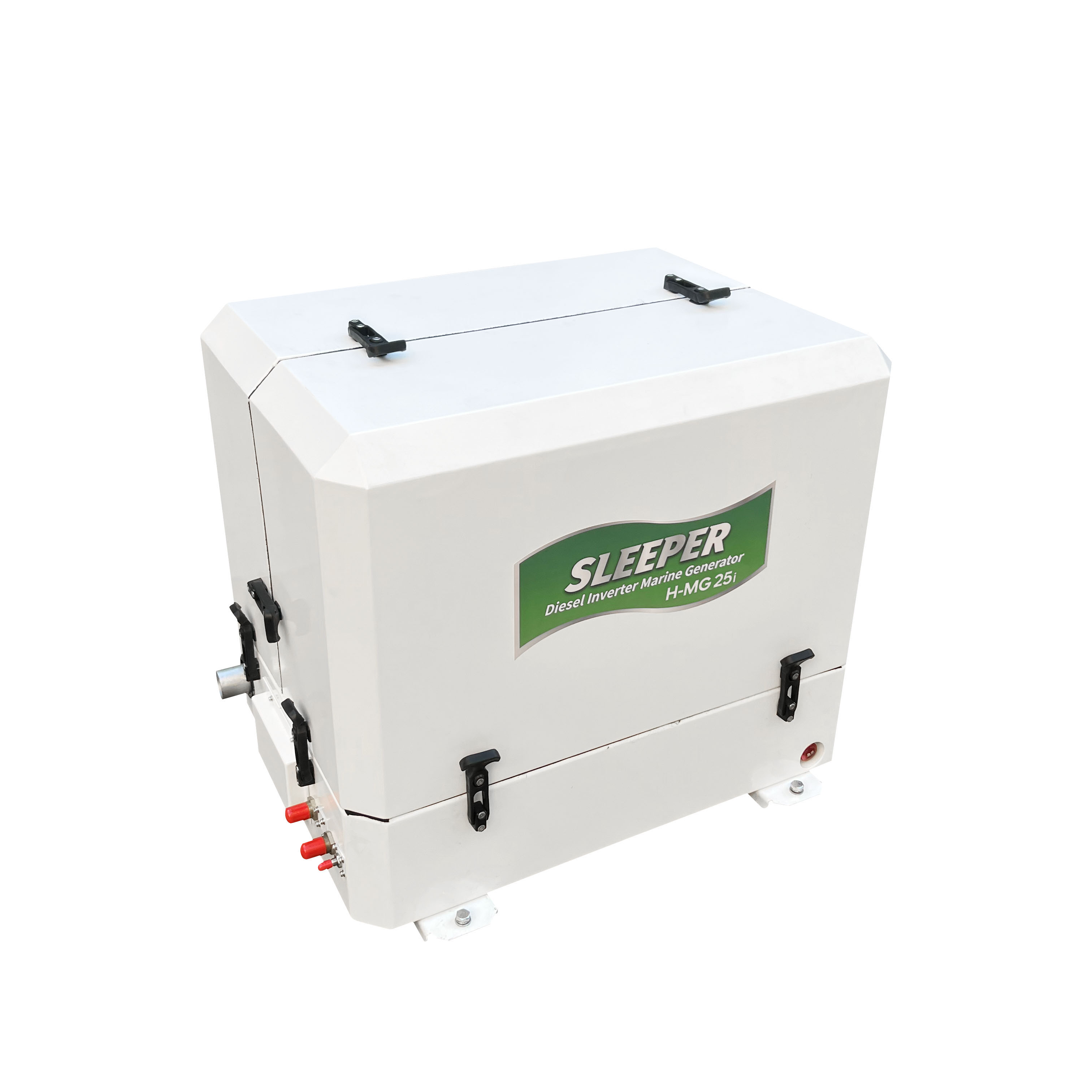

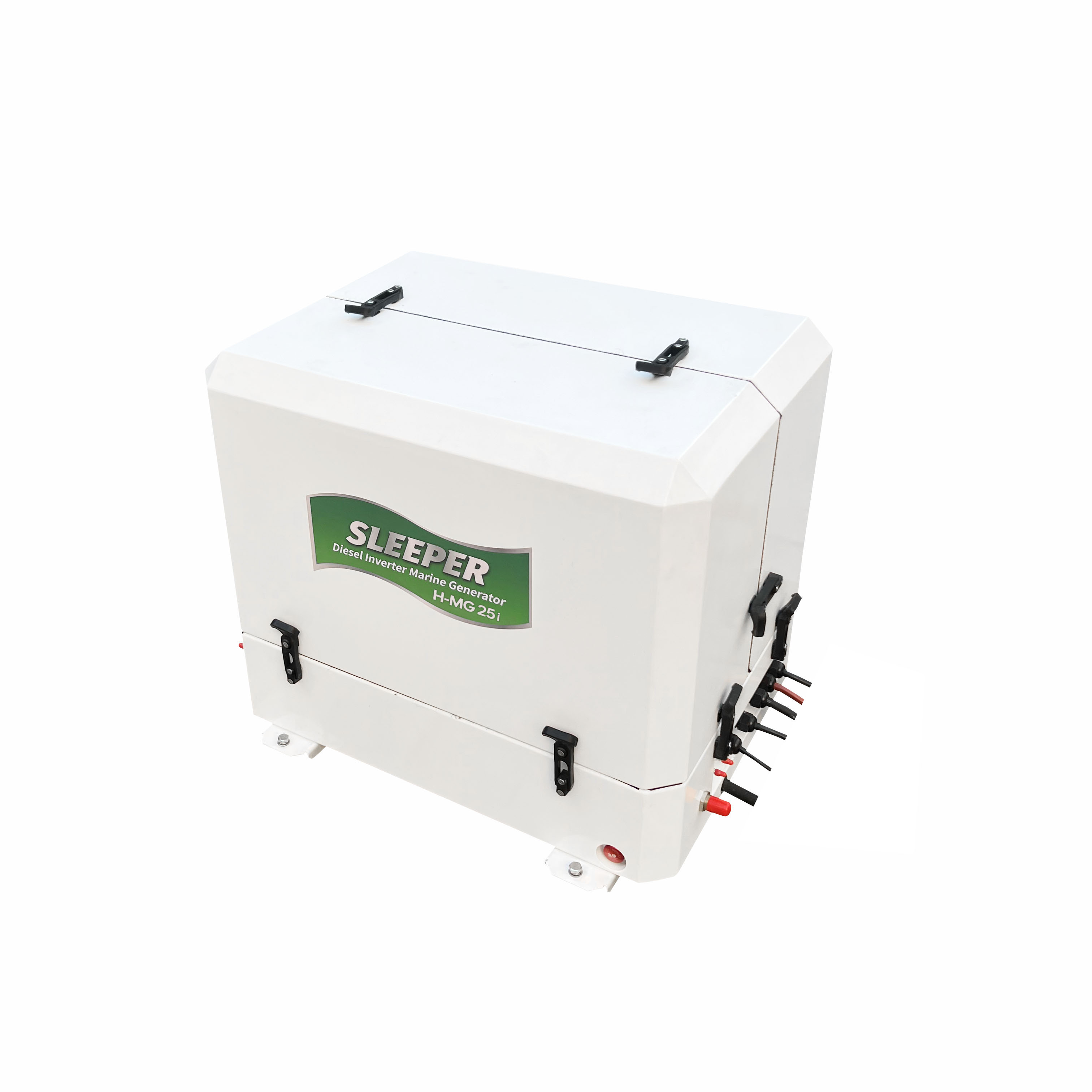

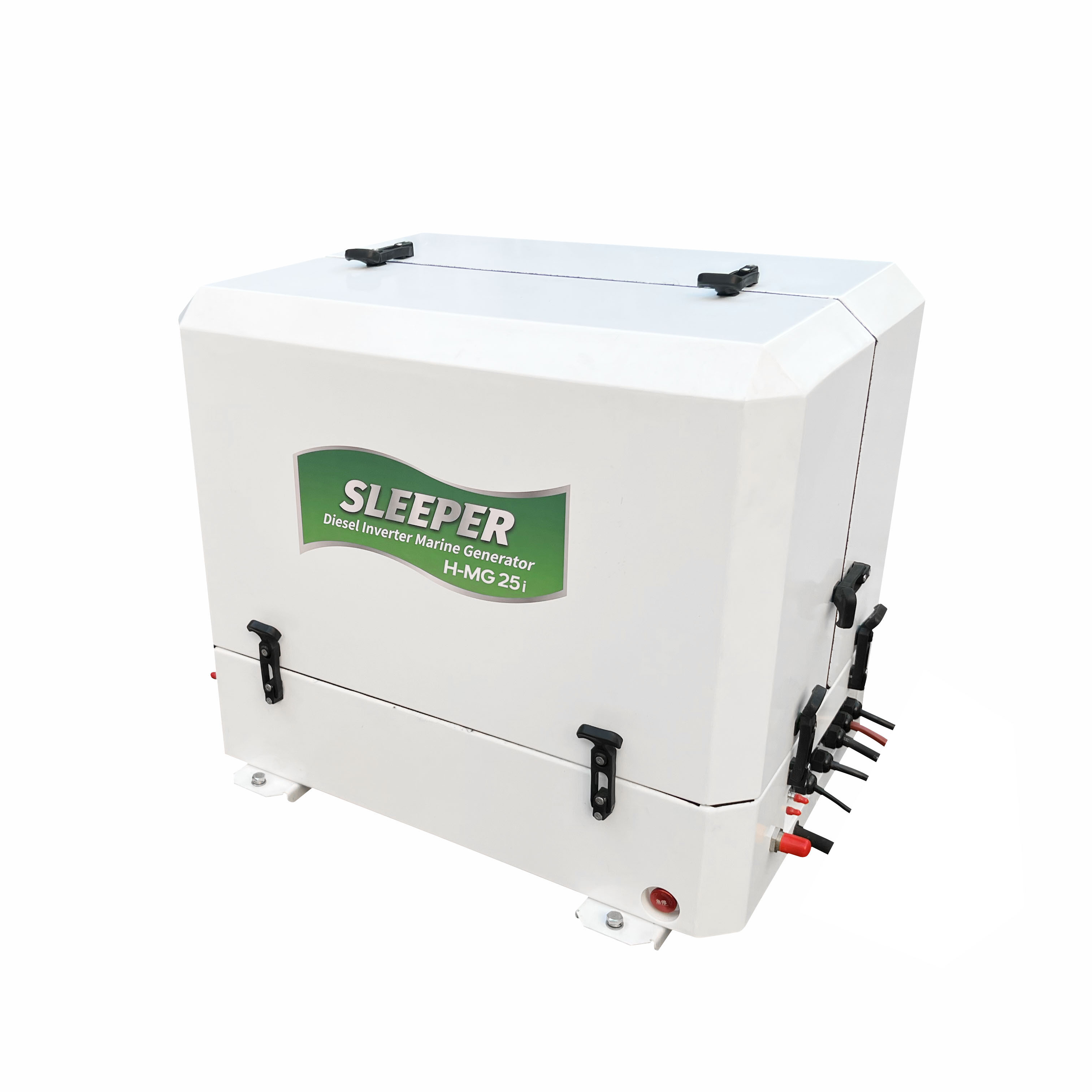

Sleeper H-MG25i Inverter Marine Generator

Model: H-MG25i

$ 28.600
$ 25.740 Limited time
€ 22.502 ₺ 1.213.412
Prices are excluding VAT
H-MG25i PMG inverter controlled silent marine diesel generator.
Contact Shop

Description

Sleeper H-MG25i is a quiet diesel inverter marine generator developed for onboard marine use with PMG inverter technology.
Continuous power: 20 kW / 25 kVA. Maximum power: 21 kW / 25.8 kVA.
PMG inverter control delivers stable, high-quality AC power for air-conditioning systems, battery charging, galley equipment and other onboard electrical loads.
The generator is 100% water-cooled, sound-insulated and designed for compact, quiet and efficient yacht and boat installations.

Specifications

Model
H-MG25i
Nominal voltage
230 / 120 / 400V
Frequency
50 / 60 Hz
Phase
1
Maximum power
21 kW / 25.8 kVA
Continuous power
20 kW / 25 kVA
Noise level
51 dBA / 7 m
Speed range
2200-3000 rpm adjustable
Cooling
Heat exchanger
Harmonic distortion
<=3%
Frequency stability
+/-0.1%
Alternator technology
Brushless, water-cooled, permanent magnet
Generator control
PMG inverter
Inverter
PMGi 25
Engine brand
KUBOTA
Engine model
V1505T
Cylinders
4
Displacement
1498 cc
Consumption
1.5 - 6.4 L/h
Battery
12VDC / 120Ah
Charging
Alternator 12V/40A
Oil capacity
6.7 L
Canopy
890x590x690 mm
Inverter dimensions
495 x 265 x 183 mm
Canopy weight
275 kg
Inverter weight
21 kg

Files

Generatorcontrolpaneldrawing
Download
Generatorcontrolpanelusermanual
Download
