Sleeper Generators

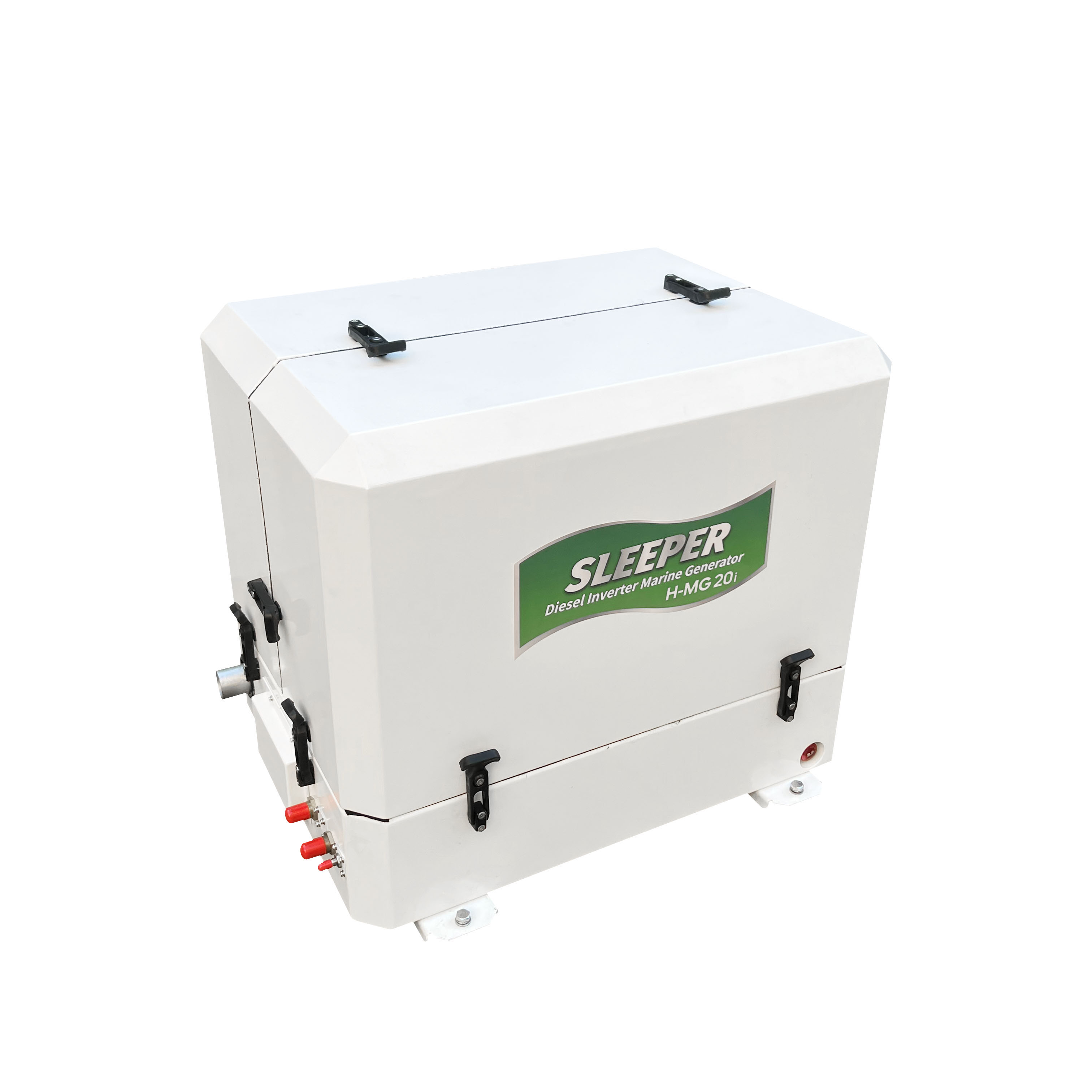

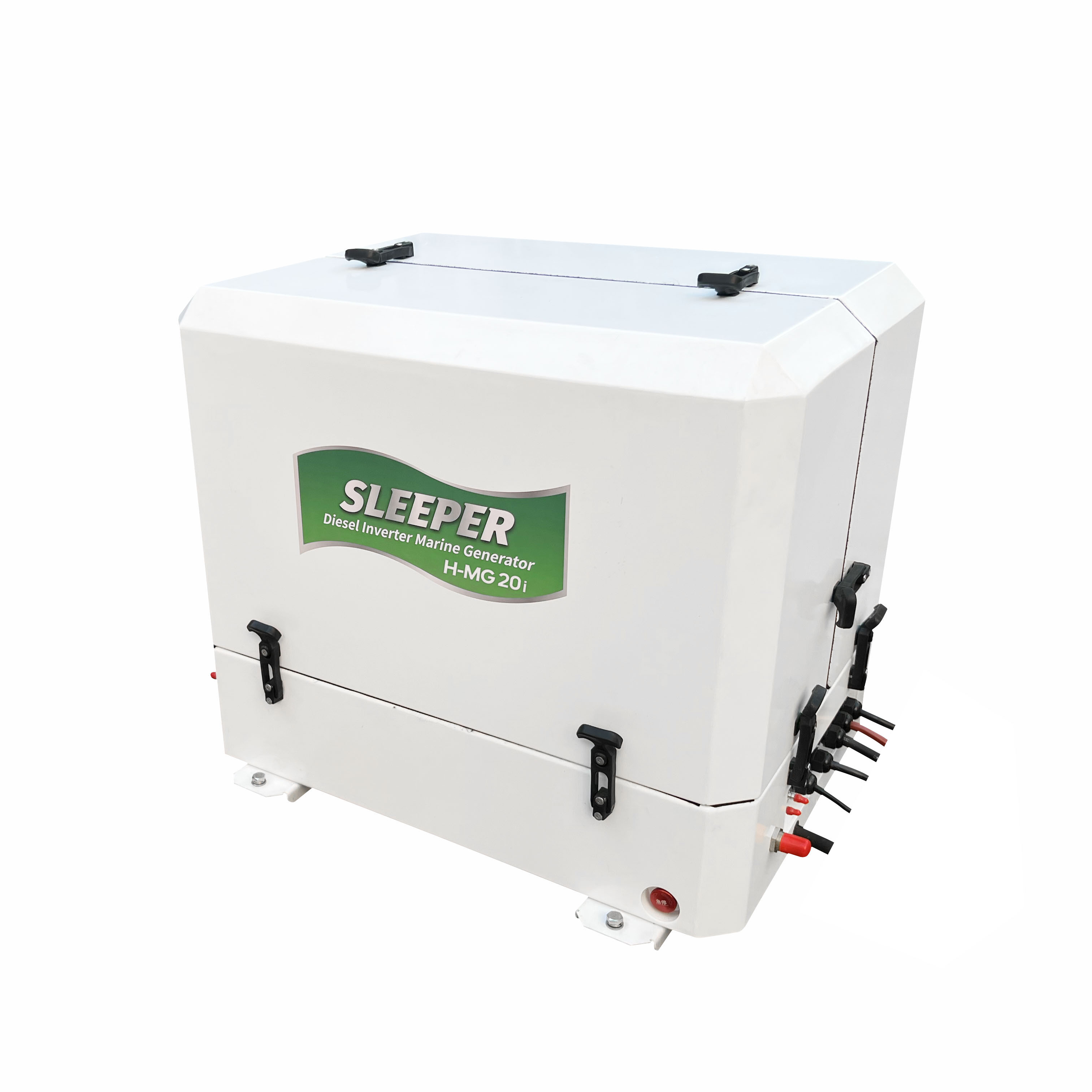

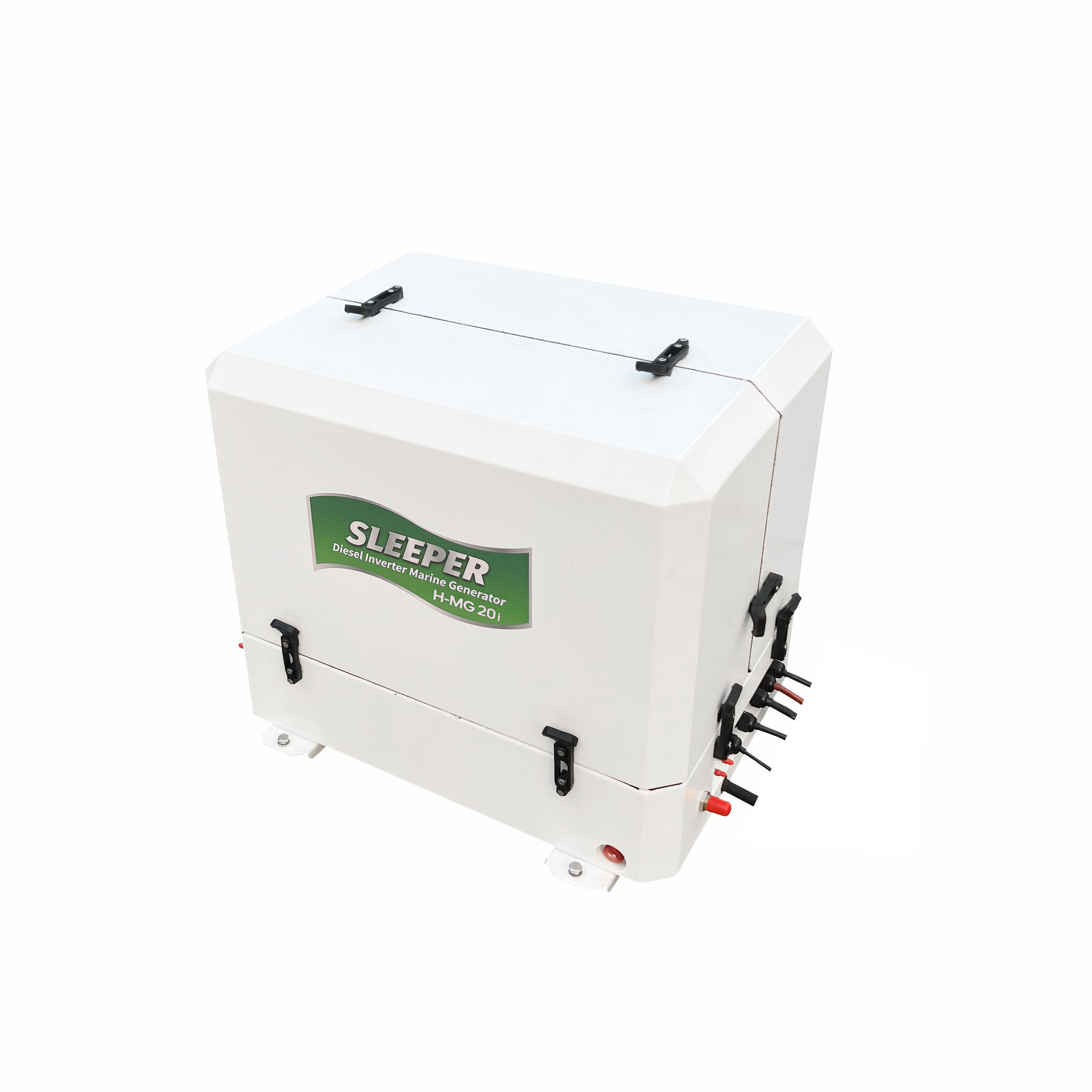

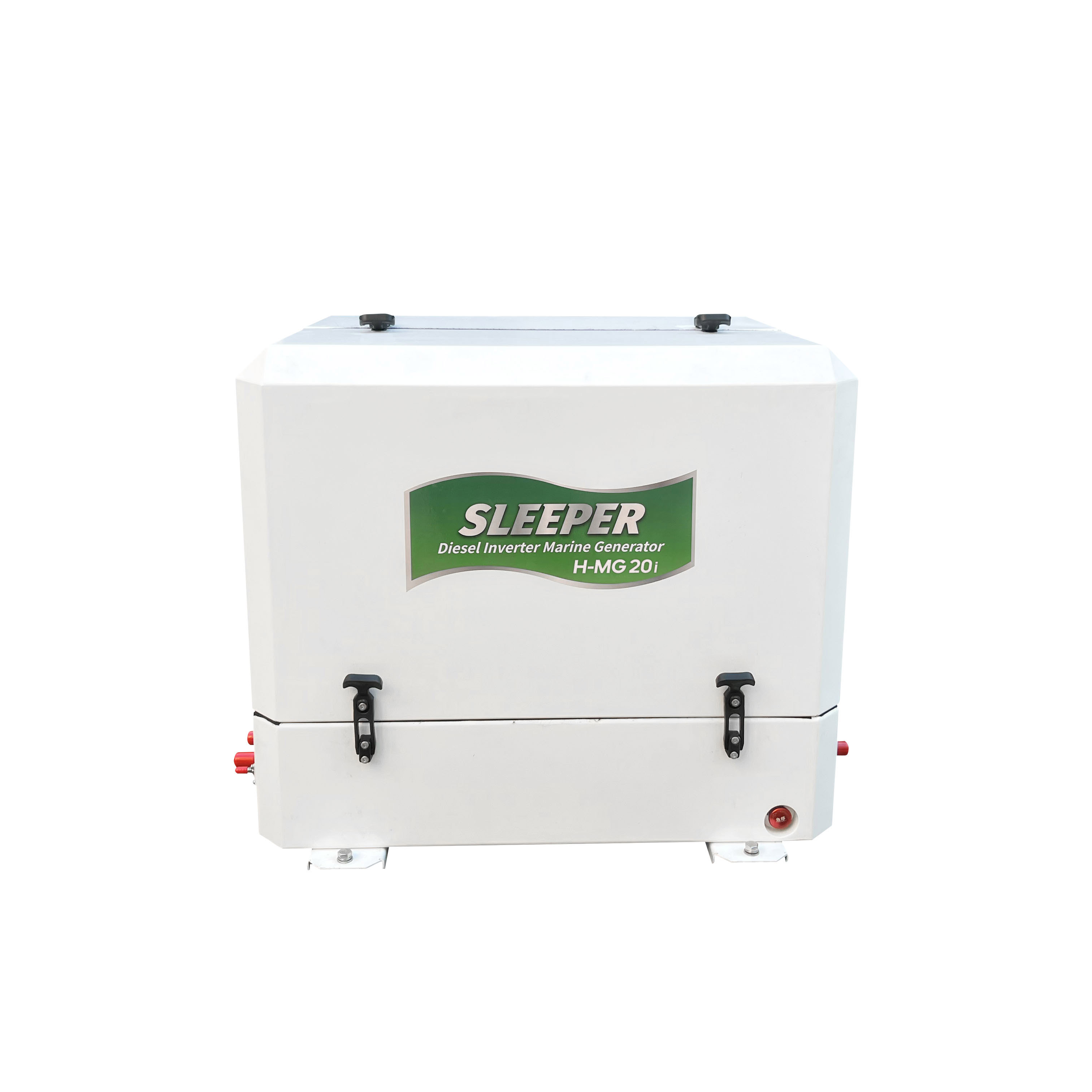

Sleeper H-MG20i Inverter Marine Generator

Model: H-MG20i

$ 25.300
$ 22.770 Limited time
€ 19.906 ₺ 1.073.403
Prices are excluding VAT
H-MG20i PMG inverter controlled silent marine diesel generator.
Contact Shop

Description

Sleeper H-MG20i is a quiet diesel inverter marine generator developed for onboard marine use with PMG inverter technology.
Continuous power: 15 kW / 18.8 kVA. Maximum power: 16 kW / 20 kVA.
PMG inverter control delivers stable, high-quality AC power for air-conditioning systems, battery charging, galley equipment and other onboard electrical loads.
The generator is 100% water-cooled, sound-insulated and designed for compact, quiet and efficient yacht and boat installations.

Specifications

Model
H-MG20i
Nominal voltage
230 / 120 / 400V
Frequency
50 / 60 Hz
Phase
1
Maximum power
16 kW / 20 kVA
Continuous power
15 kW / 18.8 kVA
Noise level
51 dBA / 7 m
Speed range
2200-3000 rpm adjustable
Cooling
Heat exchanger
Harmonic distortion
<=3%
Frequency stability
+/-0.1%
Alternator technology
Brushless, water-cooled, permanent magnet
Generator control
PMG inverter
Inverter
PMGi 20
Engine brand
KUBOTA
Engine model
V1505
Cylinders
4
Displacement
1498 cc
Consumption
1.5 - 4.8 L/h
Battery
12VDC / 120Ah
Charging
Alternator 12V/40A
Oil capacity
6.7 L
Canopy
890x560x650 mm
Inverter dimensions
463 x 234 x 180 mm
Canopy weight
265 kg
Inverter weight
18 kg

Files

Generatorcontrolpaneldrawing
Download
Generatorcontrolpanelusermanual
Download
