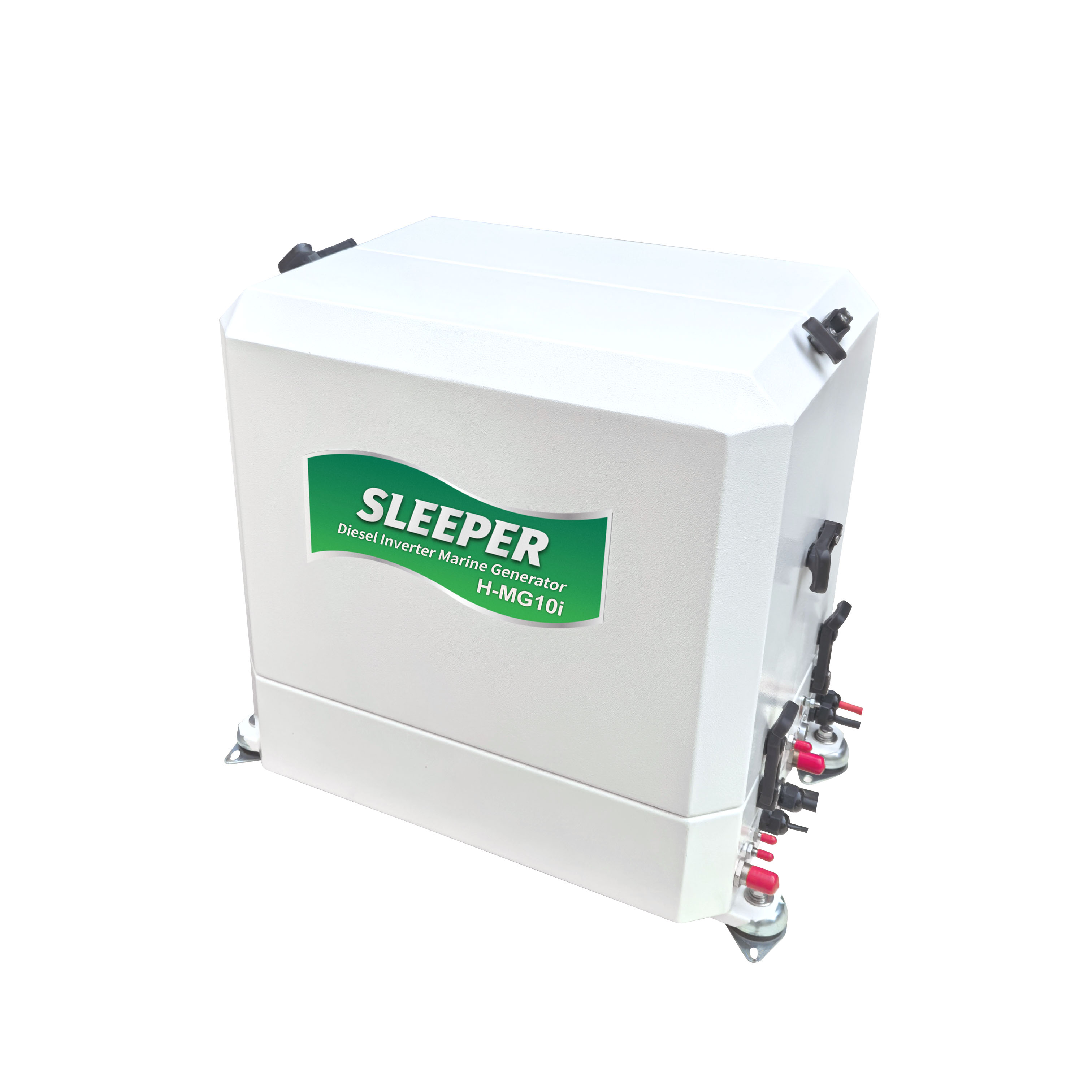

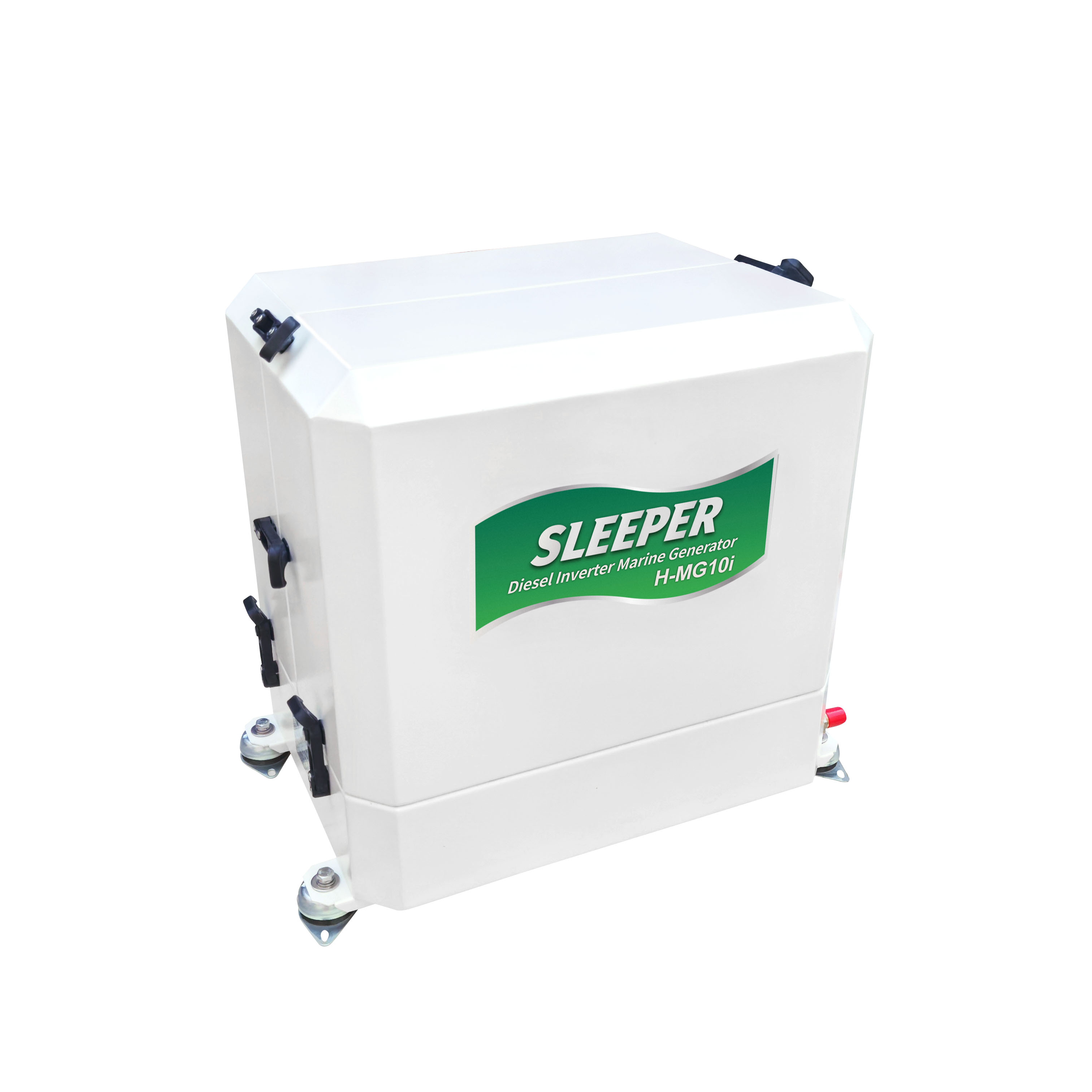

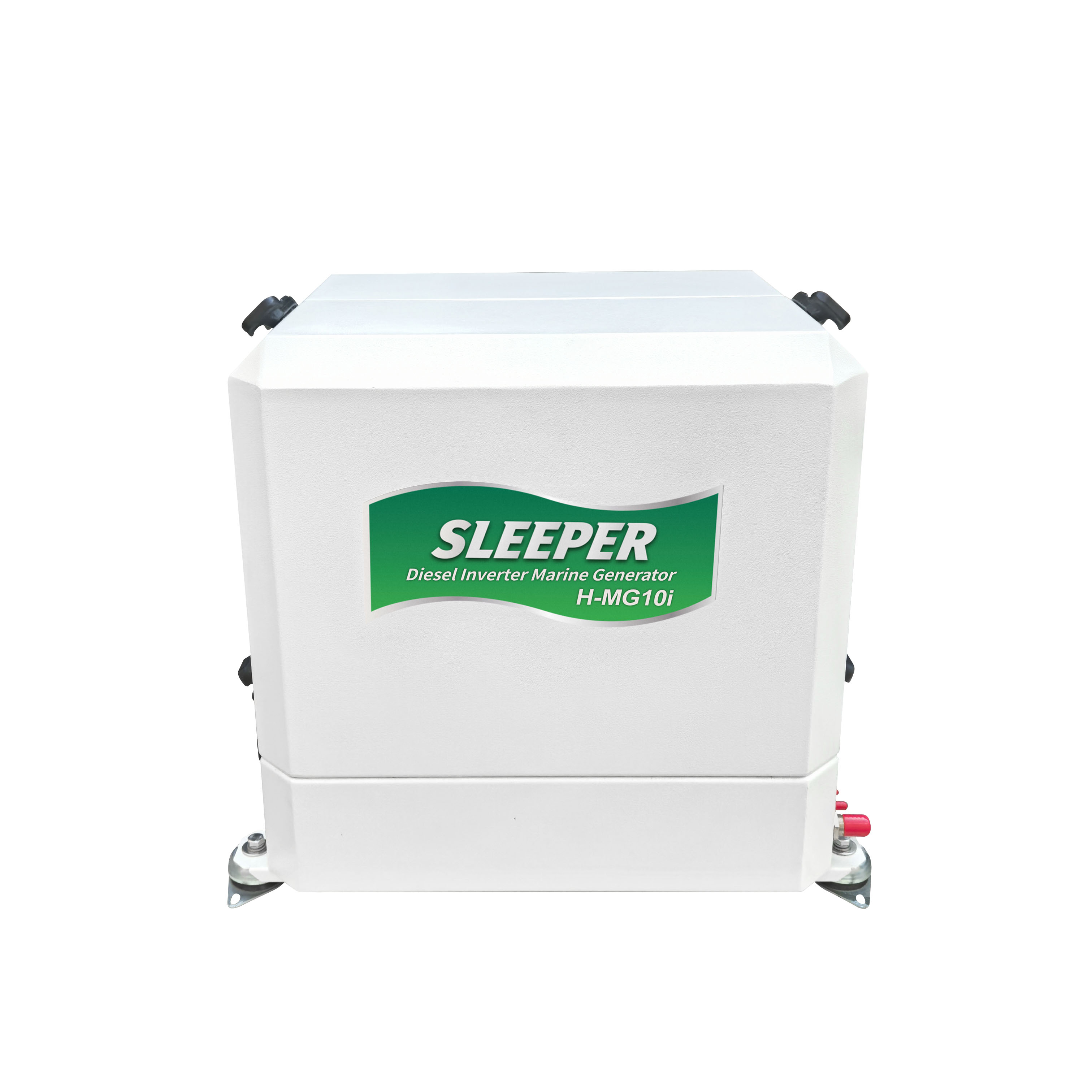

Sleeper H-MG10i Inverter Marine Generator

Model: H-MG10i

$ 16.800
$ 15.120 Limited time
€ 13.218 ₺ 712.773
Prices are excluding VAT
H-MG10i PMG inverter controlled silent marine diesel generator.
Contact Shop

Description

Sleeper H-MG10i is a PMG inverter controlled silent diesel generator model developed for marine use.
Continuous power: 8kW / 10kVA. Maximum power: 8.6kW / 10.8kVA.
It is suitable for boat and yacht applications with its brushless, water-cooled permanent magnet alternator technology and DDC digital control panel.
Standard accessories:

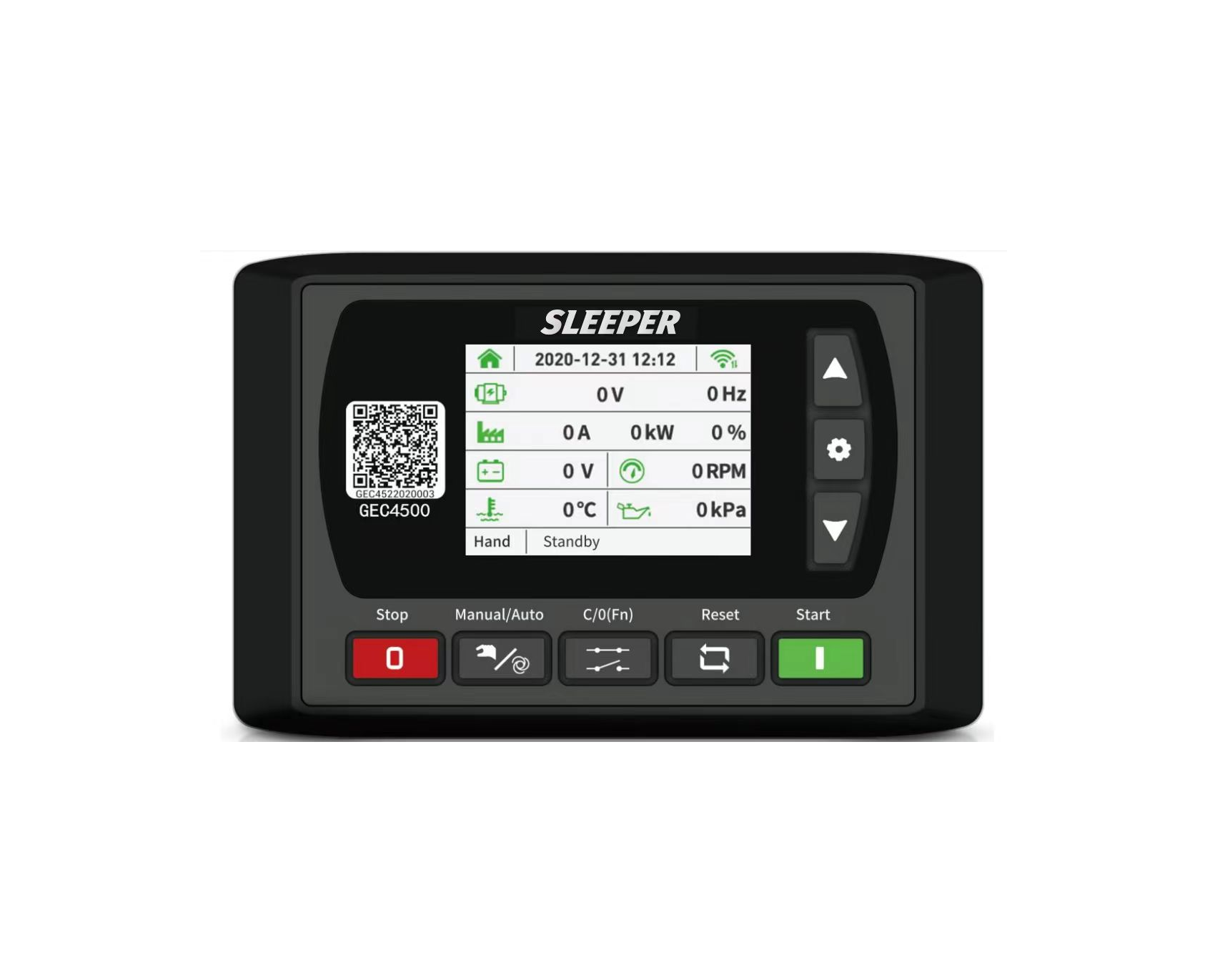

1. Remote control panel with 15m cable
2. Waterlock (water trap / water lock)
3. Electric fuel pump
4. Oil-water separator
5. Expansion tank with 2 m overflow hose
6. Siphon breaker
7. Sea water filter
8. 2m exhaust hose
9. Handcuffs

Specifications

Model
H-MG10i
Rated voltage
230/120V
Frequency
50 / 60 Hz
Phase
1
Maximum power
8.6kW / 10.8kVA
Continuous power
8kW / 10kVA
Noise
51 dBA / 7m
Speed range
2200-3000 rpm adjustable
Cooling
Heat exchanger
Harmonic distortion
≤3%
Frequency stability
±0.1%
Alternator technology
Brushless, water-cooled, permanent magnet
Generator control
PMG Inverter
Inverter
PMGi 10
Engine brand
KUBOTA
Engine model
D722
Cylinder
3
Volume
719 cc
Consumption
1.5 - 3 L/hour
Battery
12VDC / 80Ah
Charging
Alternator 12V/14A
Oil capacity
3.8 L
Cabin
578x445x558 mm
Inverter dimensions
345 x 234 x 170 mm
Cabin weight
140 kg
Inverter weight
13 kg

Files

Generatorcontrolpaneldrawing
Download
Generatorcontrolpanelusermanual
Download
H Mg10idrawing 1
Download
H Mg10ispecification 1
Download
Brochureh Mg10i
Download
